Supports a wide range of twisted yarns! One machine can simultaneously produce up to four different types of products!

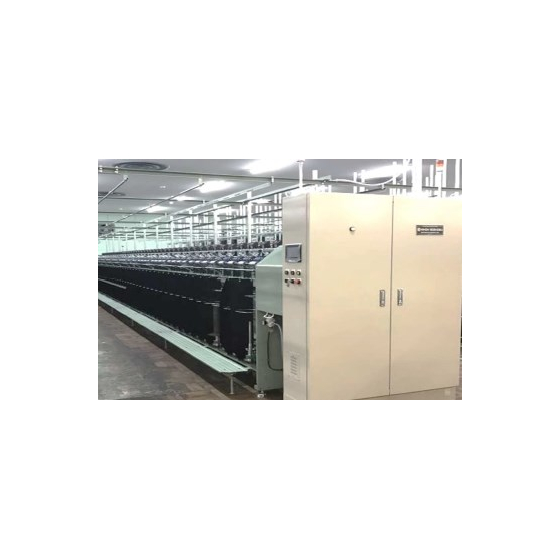

The "MRD-GOT type (double roller type)" is a combined twisting machine that accommodates a wide range of twisted yarns, including synthetic fibers, natural fibers, glass fibers, carbon fibers, and ropes. Condition changes can be easily set via a touch panel. The ring elevation is controlled by an independent motor, allowing for easy changes in winding shape and appearance. Additionally, it supports a variety of products in small lots. One machine can simultaneously produce up to four different products. We also offer custom manufacturing to meet customer requests, factory layouts, and workability. 【Features】 ■ Easy condition changes via touch panel ■ Minimal maintenance due to gearless control ■ Automatic individual stop in case of thread breakage or trouble ■ Supports a variety of products in small lots ■ Equipped with protective devices to prevent issues caused by power outages or momentary interruptions *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ＜Model MRD215＞ ■Number of spindles: MAX 100 spindles ■Spindle pitch: 215mm ■Spindle speed: MAX 6,000rpm ■Twist count: 20 to Max 1,000 T/m ■Roller speed: MAX 150m/min ■Ring diameter: 140 to 165mm ■Ring lift height: MAX 410mm ■Roller/Rubber roller diameter: φ60/φ75 (hard rubber) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（2）
Download All Catalogs
![Textile Machinery and Spinning Machinery Comprehensive Catalog [Nihon Bōsōki Kikai Seizō Co., Ltd.]](https://image.mono.ipros.com/public/catalog/image/01/3ec/688918/IPROS28967651302621613843.jpeg?w=120&h=170)
Company information
Nihon Bōshiki Kikai Seizō Kabushikigaisha has been engaged in the manufacturing of wooden Hachijo twisting machines since its founding and has developed and produced various types of textile machinery. Moving forward, we will continue to focus on the manufacturing of twisting machines and textile machinery, concentrating on further enhancing and enlarging the technologies we have cultivated thus far, improving quality, and actively responding to our customers' diverse needs, with all employees united in our efforts.
