Sample products available - Choose from over 200 items! High-performance coupling.
ＣＯＵＰ－ＬＩＮＫ
Choose from over 200 items and receive a sample! High-quality couplings at low prices. Please check the sample products to see the quality!

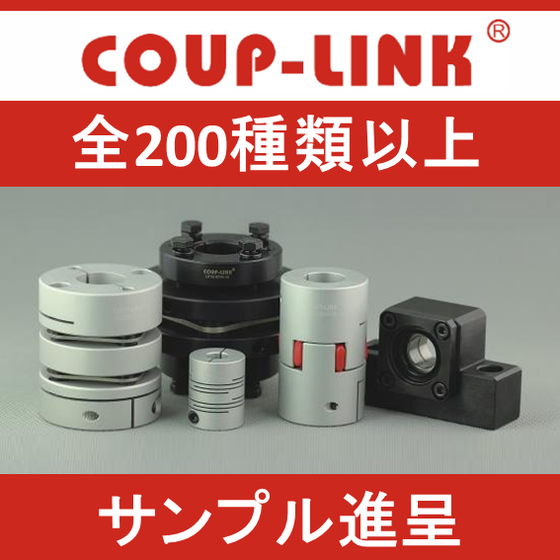

The "Guangzhou Lingke manufactured couplings" handled by Matsui consist of a product series with 7 types and 22 variations, offering a rich lineup of over 200 items that can accommodate various applications. By producing in China with a high-quality management system, we have achieved high quality at low cost. *To allow our customers to experience the quality, we will provide samples. 【Example of Product Lineup】 ■ Oldham couplings composed of aluminum alloy hubs and resin elements ■ Metal plate spring couplings made of aluminum alloy ■ Flexible couplings with slits processed on cylindrical materials ■ Simple structure couplings composed of aluminum alloy hubs and polyurethane elements *If you would like a sample, please specify the type you desire when making your inquiry. *Some items are excluded. *For more details, please refer to the materials available by downloading the catalog.
Inquire About This Product
basic information
For more details, please download the PDF or contact us.
Price range
Delivery Time
※It varies by model, so please contact us.
Applications/Examples of results
Work machinery, semiconductor manufacturing equipment, linear motion devices, small stages, printing machines, etc. *For more details, please download the PDF or contact us.*
Line up（7）
| Model number | overview |
|---|---|
| LK4 | This is an Oldham coupling made of aluminum alloy hub and resin elements. It can accommodate large eccentricity and angular misalignment, with minimal axial reaction. Available in 7 sizes. Continuous torque 0.7 (N·m) to 36 (N·m). |
| LK5 | This is a metal plate spring coupling made of aluminum alloy. It uses a metal plate spring as the element, providing high rigidity, high flexibility, and is completely backlash-free. Available in 16 sizes. Allowable torque 0.25 (N·m) to 250 (N·m). |
| LK7 | This is a flexible coupling with slits processed on cylindrical material. It can accommodate large eccentricity and angular misalignment, and is available in aluminum alloy and stainless steel materials. Available in 8 sizes. Continuous torque 0.4 (N·m) to 35 (N·m). |
| LK8 | This is a coupling with a simple structure made of aluminum alloy hub and polyurethane elements. It excels in shock absorption and can be used for various applications. Available in 13 sizes. Continuous torque 0.7 (N·m) to 665 (N·m). |
| LK15 | This is a coupling made of a steel hub and stainless steel plate springs. It offers ultra-high rigidity and is suitable for high-precision operation. The attachment to the shaft uses a wedge fastening method, allowing for high-precision installation. Available in 7 sizes. Allowable torque 60 (N·m) to 800 (N·m). |
| LK23 | This is a coupling with an aluminum alloy hub and integrated damping rubber. It has excellent vibration absorption performance and is effective in countering oscillation of servo motors and resonance of stepping motors. Available in 7 sizes. Continuous torque 1.1 (N·m) to 18 (N·m). |
| LK24 | This is a plate spring coupling that employs a double clamp method on a steel hub. In addition to ultra-high rigidity, it is also very easy to install. It is suitable for connecting feed screws of machine tools. Available in 4 sizes. Allowable torque 60 (N·m) to 300 (N·m). |
