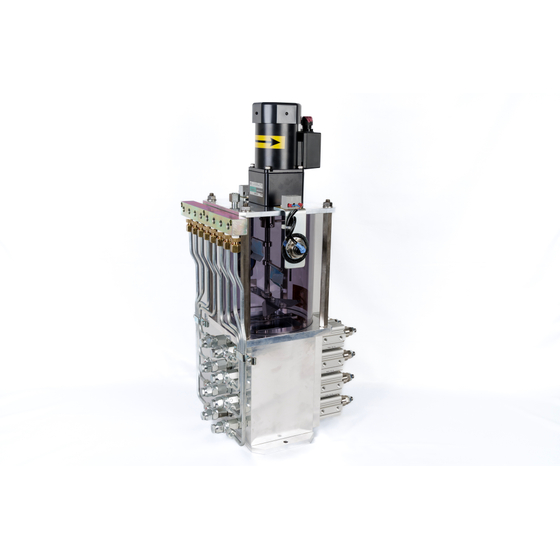

Custom grease metering pump, capable of applying to 1 to 8 individual locations with one unit.
High durability, 10-year warranty! Custom grease metering pump that does not stop the line during barrel replacement.
The product accurately dispenses a precise amount of grease at high pressure. It is capable of applying grease to 1 to 8 locations at different timings. It is possible to build an automatic grease replenishment system using a level switch. Additionally, there is no separation of grease or air contamination due to the stirring blades inside the tank. Furthermore, adjusting the amount of grease is easy. 【Features】 ■ Accurately dispenses a precise amount of grease at high pressure ■ Capable of applying grease to 1 to 8 locations at different timings ■ Possible to build an automatic grease replenishment system using a level switch ■ No separation of grease or air contamination due to stirring blades inside the tank ■ High durability (10-year warranty) *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Model ・PMW-KG2-◯PE□-OP-φ 32（φ 40） ・PMW-KG4-◯PE□-OP-φ 32（φ 40） ・PMW-KG6-◯PE□-OP-φ 32（φ 40） ・PMW-KG8-◯PE□-φ 32（φ 40） ■Pump Name: Air-operated Multi Pump ■Pump Type: Air-driven Bra Pump (Reciprocating Type) ■Discharge Volume/Pump Element ・PE66: 0.01～0.08 ・0.2G: 0.11～0.22 (cc/stroke) ・PE86: 0.04～0.15 ・0.3G: 0.27～0.33 (cc/stroke) ■Discharge Frequency: max. 60 (strokes/min) ■Number of Pump Elements Installed: 1～8 ■Power ・Pump: Air (4kg/cm² or more) ・Agitation: Motor (AC200V or AC100V) ■Tank: Capacity: 7.5 (L) ■Weight: Approximately 14 (kg) to 25 (kg) ■Lubricating Grease: NLGI-No.0 to No.2 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage Examples】 ■ Manual assembly lines and automatic quantitative coating devices ■ Quantitative coating by robots, etc. *For more details, please refer to the PDF materials or feel free to contact us.
catalog（2）
Download All Catalogs
Company information
Our company supplies an appropriate amount of lubricants and various liquids to all types of machinery, and we handle everything from design to equipment manufacturing, installation work, and after-sales service. Currently, our sales range has expanded to include hydraulic and pneumatic systems, electrical systems, and automation equipment, resulting in a diverse range of work activities. Additionally, we are transitioning to high-viscosity fluid pumping and are actively developing equipment for precise dispensing of sealants and adhesives.
