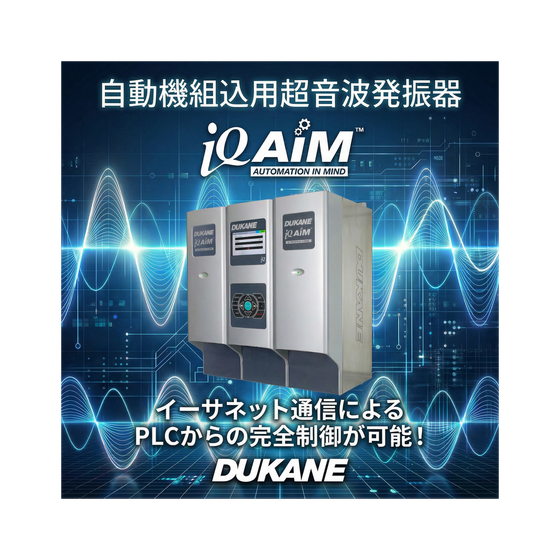

New ultrasonic oscillator iQ-AiM designed exclusively for automatic devices compatible with CC-Link and Ethernet/IP connections.
The iQ-AiM series ultrasonic oscillator, specially designed for integration into automatic devices, can be connected to the device's PLC using communication modules such as CC-Link, Ethernet/IP, and Profibus, allowing all control and monitoring to be conducted from the device's PLC. The cumbersome connection of I/O wires is resolved with just one cable, eliminating the need for external amplitude control and output monitoring analog units. Ultrasonic control is possible not only through ON/OFF external signals but also through time control and energy control. Furthermore, by using an external encoder, it supports distance control, a first for probe-type oscillators. It also features Duquesne's patented output trigger function, enabling stable oscillation start and further enhancing ultrasonic welding in automatic devices.
Inquire About This Product
basic information
Supported frequencies: 15kHz/20kHz/30kHz/35kHz/40kHz Maximum output: (varies by frequency and model) Supported communication protocols: Standard - Ethernet/IP, Profibus Optional - CC-Link, EtherCAT, Powerlink Trigger: External signal, output trigger (patented) Oscillation control: External signal, time, energy, distance (requires external encoder) Power supply voltage: Below 1200W is universal voltage between single-phase 100VAC to 240VAC Above 1800W is single-phase 200VAC to 240VAC The installation orientation of the oscillator can be selected as vertical (Type V) or horizontal (Type H).
Price range
Delivery Time
Applications/Examples of results
Ultrasonic welding and ultrasonic cutting with various automatic devices.
Line up（24）
| Model number | overview |
|---|---|
| 15HB500-2R | 15kHz 500W 200-240VAC Horizontal type with screen |
| 15VB500-2R | 15kHz 5000W 200-240VAC Vertical type with screen |
| 15VB500-2P | 15kHz 5000W 200-240VAC Vertical type without screen |
| 20HB120-UR | 20kHz 1200W Universal voltage Horizontal type with screen |
| 20VB120-UR | 20kHz 1200W Universal voltage Vertical type with screen |
| 20VB120-UP | 20kHz 1200W Universal voltage Vertical type without screen |
| 20HB260-2R | 20kHz 2600W 200-240VAC Horizontal type with screen |
| 20VB260-2R | 20kHz 2600W 200-240VAC Vertical type with screen |
| 20VB260-2P | 20kHz 2600W 200-240VAC Vertical type without screen |
| 20HB360-2R | 20kHz 3600W 200-240VAC Horizontal type with screen |
| 20VB360-2R | 20kHz 3600W 200-240VAC Vertical type with screen |
| 20VB360-2P | 20kHz 3600W 200-240VAC Vertical type without screen |
| 30HB120-UR | 30kHz 1200W Universal voltage Horizontal type with screen |
| 30VB120-UR | 30kHz 1200W Universal voltage Vertical type with screen |
| 30VB120-UP | 30kHz 1200W Universal voltage Vertical type without screen |
| 30HB180-2R | 30kHz 1800W 200-240VAC Horizontal type with screen |
| 30VB180-2R | 30kHz 1800W 200-240VAC Vertical type with screen |
| 30VB180-2P | 30kHz 1800W 200-240VAC Vertical type without screen |
| 35HB120-UR | 35kHz 1200W Universal voltage Horizontal type with screen |
| 35VB120-UR | 35kHz 1200W Universal voltage Vertical type with screen |
| 35VB120-UP | 35kHz 1200W Universal voltage Vertical type without screen |
| 40HB090-UR | 40kHz 900W Universal voltage Horizontal type with screen |
| 40VB090-UR | 40kHz 900W Universal voltage Vertical type with screen |
| 40VB090-UP | 40kHz 900W Universal voltage Vertical type without screen |
catalog（3）
Download All Catalogs
Company information
Dukane Japan is the Japanese subsidiary of Dukane IAS LLC, headquartered in St. Charles, Illinois, USA. It supports various plastic welding processes with its unique advanced technologies, including ultrasonic servo welders utilizing servo control technology, ultrasonic probe systems that can be controlled and monitored from external PLCs via Ethernet IP connection or CC-Link connection, vibration welders capable of high-precision welding with high mechanical rigidity, and the Servo Weld Plus (Dual Servo) spin welder that performs rotation and pressure control via servo. Additionally, with the motto "One World, One Dukane," it offers comprehensive support in countries and regions outside Japan through a worldwide network that spans major industrial nations. This allows for the relocation of equipment purchased in Japan to overseas locations for local service, as well as the maintenance of equipment relocated from abroad in Japan.
