Tool discharge grinding machine Helitronic Power Diamond 400
Walter's two-in-one machine integrates discharge machining and grinding! It can accommodate up to three electrodes/grinding wheels.

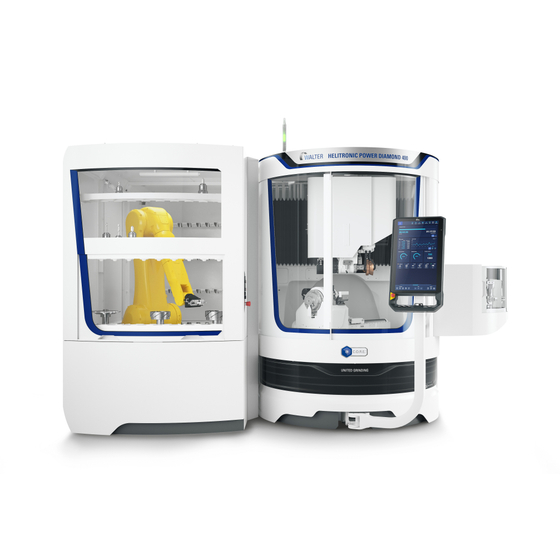

The "Helitronic Power Diamond 400" is a machine that combines electrical discharge machining and grinding, equipped with an electrode exchange device and a grinding wheel exchange device, as well as a motor spindle capable of mounting up to three electrodes or grinding wheels. It is customized according to customer needs and demonstrates excellent productivity. Additionally, by using it in conjunction with "FINE PULSE TECHNOLOGY," it can process a wide range of materials. It supports tool diameters from 3 to 380 mm, a maximum processing length of 520 mm, and a maximum workpiece weight of 50 kg. 【Features】 ■ Equipped with grinding wheel exchange device/electrode exchange device ■ Optimized low-vibration type, mineral cast gantry structure ■ Motor spindle with spindle end ■ Capable of mounting up to three rotating electrodes or three grinding wheels ■ Allows for easy switching between electrical discharge machining of CBN/PCD tools and grinding of high-speed steel/carbide tools *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 ■ Fully automatic processing with a single chuck ■ Various loading systems ■ Abundant options to improve efficiency ■ FANUC, world-standard control system ■ Linear axes X, Y, Z with linear drive ■ Rotary axes A, C with torque motors *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Electrical discharge machining and grinding of rotationally symmetric tools for the metal and woodworking industries ■ Manufacturing ■ Regrinding ■ Materials: CBN, PCD, high-speed steel, carbide, cermet, ceramic *For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
High degree of freedom, productivity, and quality that generate competitiveness Walter is a world-leading manufacturer in the fields of tool grinding machines, PCD tool electrical discharge machines, laser processing machines, and tool measuring machines. The high degree of freedom and productivity backed by high quality guarantee a strong competitiveness in tool grinding and manufacturing, regardless of standard or non-standard tools.
