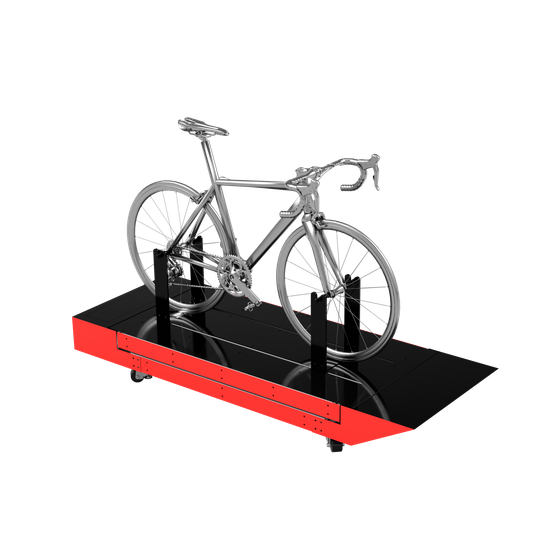

Wind tunnel test bicycle measurement platform 2020J
A drag measurement platform equipped with correction functions that achieves low-noise measurements.
This is a wind tunnel scale for competitive bicycles. It is designed with the assumption of being combined with the Aero Optim series and features a portable, slim body for high usability. It supports not only quick releases but also all types of through axles commonly available in the market.
Inquire About This Product
basic information
Model Name: Bicycle Measurement Platform 2020J Measurement and Display Content: Wind Speed, Drag Value Dimensions: W 706 × H 270 (without jig) × L 1962 [mm] Maximum Allowable Load: 120kg (bicycle + rider) Measurement Resolution: 0.1g (sensor resolution) *1/0.1N (minimum display value) Weight: 150 kg Wheel Size: For 700C (standard) Wheelbase: Adjustable up to a maximum of 1080mm Compatible Axles: Various quick release and thru-axle types Measurement While Pedaling: Possible (free roller on the rear wheel)
Price information
Please feel free to contact us. We will provide you with a quote.
Delivery Time
Applications/Examples of results
Measurement of air resistance for competitive bicycles Measurement of air resistance for bicycle tires and accessories
Detailed information
-
A combination of a three-cell air blowing unit and a measuring stand for bicycles, which is the minimum required for bicycle measurement.
-
It is used for equipment adjustments by world-class professional teams.
-
It is being used for aerodynamic development of competition helmets for the Olympics. It can also be used for aerodynamic development of individual frames and wheels.
-
Each measuring table is assembled while accurately aligning on a large flat plate.
