[Application Example] Measurement System for Small Antenna Radiation Patterns, Antenna Gain, and RF Characteristics of Small Wireless Devices Using an Anechoic Chamber

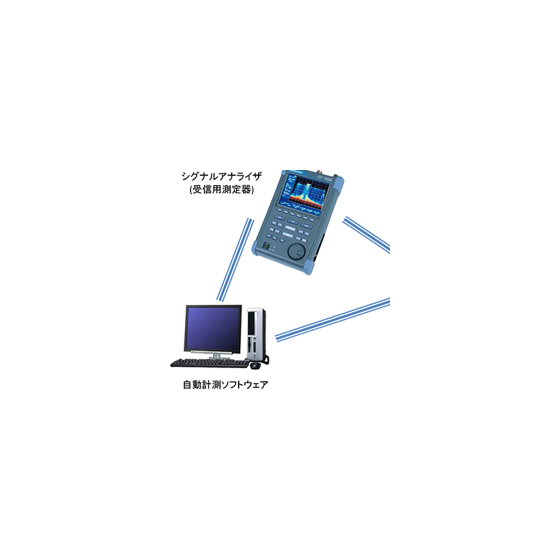

It is possible to measure the radiation pattern and antenna gain of small antennas, as well as the antenna efficiency and effective radiated power of small wireless devices. By incorporating an optional two-axis positioner, global surface radiation power measurement becomes possible. Compared to anechoic chambers, this system is more affordable and easier to install, allowing for flexible adaptation to office layouts. 【Product Introduction】 ■ Anechoic Chamber / Shielded Box ■ Handheld Spectrum Analyzer ■ Biconical Antenna MAN150 ■ Log-Periodic Antenna M213/213R *For more details, please refer to the PDF materials or feel free to contact us. 【System Configuration】 ■ Large Anechoic Chamber (Polarization Switching Mechanism / Wave Absorber) ■ Two-Axis Positioner ■ Receiving Antenna (Biconical / Log-Periodic) ■ Signal Analyzer (Receiving Measurement Device) ■ Automatic Measurement Software ■ Calibration Kit (Standard Signal Generator / Measurement Antenna / Rotary Connector) ■ RF Cables, etc. *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【System Configuration】 ■ Large Radio Wave Absorbing Chamber (Polarization Switching Mechanism/Radio Wave Absorber) ■ 2-Axis Positioner ■ Receiving Antenna (Biconical/Log-Periodic) ■ Signal Analyzer (Receiving Measurement Device) ■ Automatic Measurement Software ■ Calibration Kit (Standard Signal Generator/Measurement Antenna/Rotary Connector) ■ RF Cables, etc. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
