Saved on the SD memory card! You can easily retrieve the data.

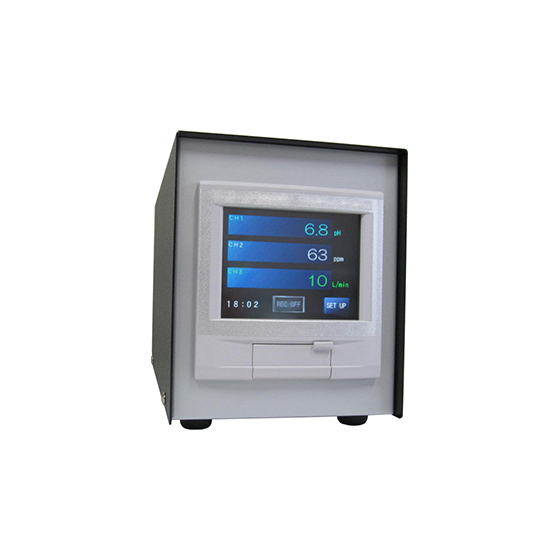

The "UFDL1000" is a data logger unit that enables the automation of CCP management in HACCP. It saves the measurement data of hypochlorous acid concentration, pH value, and temperature from the carbonated hypochlorous acid production device and citric acid hypochlorous acid production device onto an SD memory card. 【Features】 ■ Automatic recording of measurement values for up to 3 channels (pH/residual chlorine concentration/temperature) ■ Monitoring of pH hypochlorous acid can be done in offices and other locations using the display function ■ Collected record data can be easily converted to CSV format for Excel files *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Display: 3.5-inch touch panel color LCD with 3-stage display (pH, residual chlorine concentration, temperature) ■Data collection function: Analog data (4-20mA) 3 channels ■Recording method: Instantaneous value ■Installation environment: Temperature 0–40℃, humidity 40–80% (no condensation), not exposed to corrosive gases ■Power supply: AC85–264V 50/60Hz approximately 20VA or less ■External dimensions: 120 (W) × 140 (H) × 220 (D) ■Weight: 1500g *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
catalog（4）
Download All Catalogs
News about this product（1）
Company information
Unifeed Engineering Co., Ltd. is a company primarily engaged in the development, design, manufacturing, sales, construction, and maintenance management of water treatment equipment. We handle various products, including active water production systems, sterilizing water production systems, and formulations. Additionally, we manufacture food additives and provide consulting services for food factories, as well as microbiological testing services. If you have any requests, please feel free to contact us.
