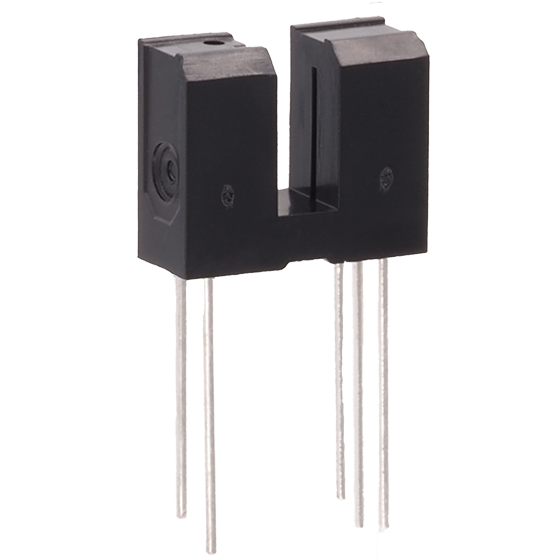

A compact photo interrupter that boasts high versatility and complies with industry standards. For multiple purchases and reduction of design man-hours. 3mm gap / photo IC output.
KI3662 is a photo interrupter that employs an infrared light-emitting diode on the emitting side and a phototransistor output on the receiving side. - Object passage detection for card machines and currency exchange machines - Coin passage detection for vending machines and amusement devices - OA equipment is suitable for various applications. For more details, please contact us or refer to the catalog.
Inquire About This Product
basic information
【Features】 ○ Compatible with flow soldering ○ High detection accuracy: slit width 0.5mm ○ Built-in amplifier, built-in pull-up resistor type ○ Other series Low-level output type when light is present... KI3663 Phototransistor type... KI3664 【Specifications】 ○ Package: PCB direct mount type ○ Gap: 3mm ○ Depth: 7.5mm ○ Slit: 0.5mm
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Applications】 ○ Object passage detection for card machines and currency exchange machines ○ Coin passage detection for vending machines and amusement devices ○ OA equipment and others ● For more details, please contact us or refer to the catalog.
Detailed information
-
[Industry Standard Compliant] Photo Interrupter for Small Mechanism Detection Total of 8 Types
Line up（8）
| Model number | overview |
|---|---|
| KI3642 | 5mm gap / Photo IC output High when light is received (with pull-up resistor) |
| KI3644 | 5mm gap / Photo transistor output |
| KI3652 | 5mm gap / Photo IC output High when light is received (with pull-up resistor) / with boss |
| KI3654 | 5mm gap / Photo transistor output / with boss |
| KI3662 | 3mm gap / Photo IC output High when light is received (with pull-up resistor) |
| KI3663 | 3mm gap / Photo IC output Low when light is received (with pull-up resistor) |
| KI3664 | 3mm gap / Photo transistor output |
| KI3674 | 3mm gap / Photo transistor output / with flange |
