Ideal for measuring viscoelastic fluids and liquids containing bubbles! Outputs viscosity changes in real-time with DC 4-20mA.

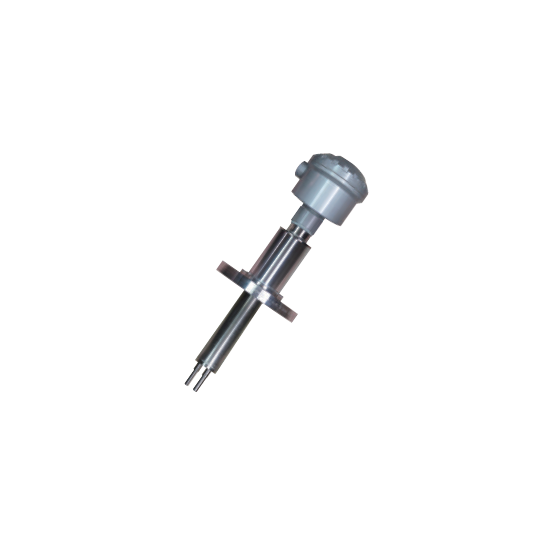

The "MV type" is an inline viscous sensor with KHK certified, and compatible with sanitary specifications. The two metal rods at the tip vibrate laterally, applying shear force to the fluid. With a vibration frequency of 70Hz and a vibration amplitude large enough to be felt by touch, as the viscosity of the fluid increases and the restraining force on the vibrating element grows, the attenuation of the vibration amplitude is accurately detected. This difference in amplitude is output as a viscosity difference in real-time DC 4-20mA. 【Features】 ■ Two lateral vibration rods ■ Supports installation up to 5m on tank tops ■ MADE IN JAPAN ■ High reproducibility and durability ■ Short delivery times and comprehensive maintenance support *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Temperature: Standard specification room temperature to 100℃ (Heat-resistant specification Max. 250℃) ■Pressure: FV to 1MPa (static pressure) *Pressure design can be up to 1.5MPa ■Viscosity range: - Minimum 0 to 5mPa·s - Maximum 0 to 1,000,000mPa·s ■Flow rate: Max. 1 m/sec. ■Input power supply: AC100/200V±10% 50/60Hz ■Power consumption: 5VA ■Output: DC4 to 20mA ■Repeatability accuracy: ±2%F·S ■Materials: SUS304, SUS316, Hastelloy C ■Surface treatment: Teflon lining, electropolishing ■Mounting: Screw, flange, hygienic fitting (sanitary specification)
Price range
Delivery Time
Applications/Examples of results
【Application】 ■Measurement of viscoelastic fluids and liquids containing bubbles *For more details, please refer to the PDF document or feel free to contact us.
