Bicycle Air Resistance Measurement with the Aero Optim
Aero Optim
A solution for a fast, repeatable evaluation of bicycle frames, wheels, parts, and even rider gear and riding forms.
[Aero Optim Series] ★For more details, please visit our website★ https://japanfudo.com/product/service4-1-1/ The Aero Optim is an independent wind tunnel unit that can be stacked together in a grid to create a larger flow area as needed. Initially developed to make wind tunnel experiments more accessible to cycling enthusiasts, everything from installation to operation to measurement is made simple. The Aero Optim series is a stand-alone wind tunnel unit that consolidates all functions of a wind tunnel (fan, diffusor and rectification) into a 0.7m by 0.7m unit. These units can be combined to form the airflow required for a given test section. A standard wind tunnel is often cost-prohibitive to someone looking into purchasing one for the first time, owing to its large consumption of building space and power, as well as high maintenance fees. The Aero Optim wind tunnel provides a low-cost, space-efficient alternative to those wishing for just enough flow quality to make simply, repeatable tests. Measurement Platforms: For bicycles, competitive wheelchairs, 6-axis measurement platforms, etc. -Wind Tunnel for Everyone-
Inquire About This Product
basic information
[Aero Optim Wind Tunnel] Wind Speed: 1 to 15 m/s (3.6 to 54 km/h) Wind Speed Distribution: ±8% Body Dimensions (L × W × H): 1.5 × 0.7 × 0.7 [m] Fan: 7.5 kW IPM Motor, Axial Flow Fan Weight: 160 kg Power Supply: AC200V 3-phase 50/60Hz Includes fan control box, control panel and software for wind speed measurement. Optional equipment to improve flow quality are available as well as instruments to measure additional parameters. [Bicycle Measuring Table] Dimensions*: W630×L3150×H400 mm Weight: 300kg Maximum Weight Capacity: 150kg (bicycle + rider) Wheelbase Ranger: 890-1150 mm Compatible Axle Types: Quick Release / φ12 mm Thru axle Rated Output: 1kN Sensor Resolution: 0.02% of R.O.** Compatible Wheel Size: 700C*** *Excluding bicycle fixtures (otherwise approx. 800 mm) **Based on loadcell embedded within the table ***Default specification, please contact us for changes
Price information
Prices are subject to change. Please contact us for a quotation.
Delivery Time
※Delivery times are subject to change. Please contact us for a quotation.
Applications/Examples of results
【Applications】 ■Wind tunnel testing (Aerodynamic tests such as drag measurement, visualization tests using smoke, etc.) ■Wind resistance testing (Wind resistance performance tests for tents, umbrellas, structures, etc.) *For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-

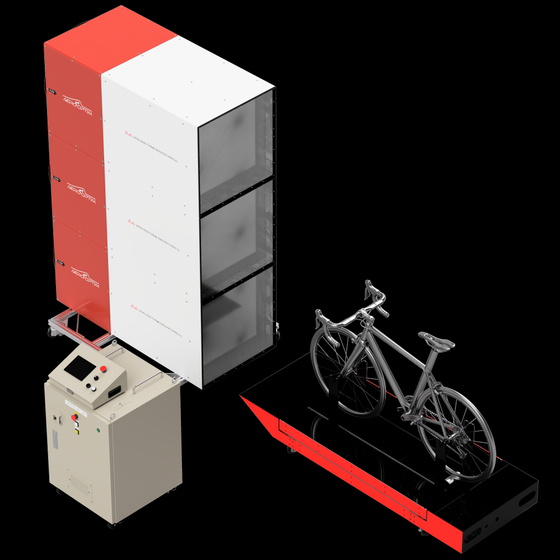

A combination of a three-cell air blowing unit and a measuring stand for bicycles, which is the minimum required for bicycle measurement.
-

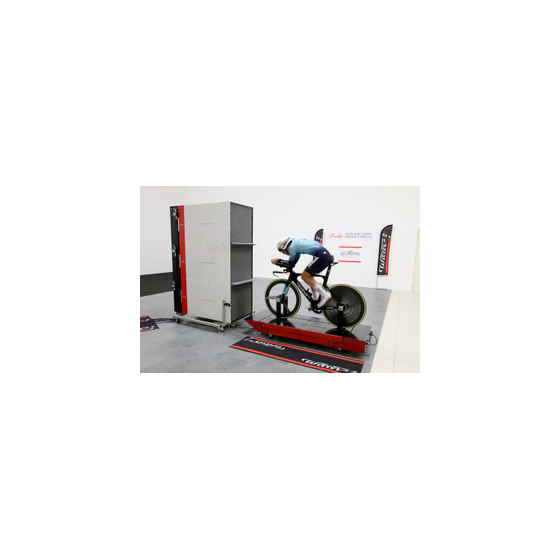

Testing of a bicycle using Aero Optim (equivalent to 6 units).
-
Custom options for wheel rotation are also available. Testing can be conducted with the wheel alone.
-
One DC power supply is required for each air blowing unit.
catalog（3）
Download All Catalogs
Company information
Wind Tunnel for Everyone From large-scale and compact wind tunnels to advanced force balance systems, we deliver solutions that bring the cutting edge of fluid dynamics within reach. Besides offering equipment, we provide both b2b and b2c support through commissioned testing using our in-house wind tunnels at the Fuji Aero Performance Center in Numazu, Shizuoka, helping prepare your ideas for the real world.
