Technology that achieves ultra-high precision measurement! Quick response to processing feedback with easy operation.

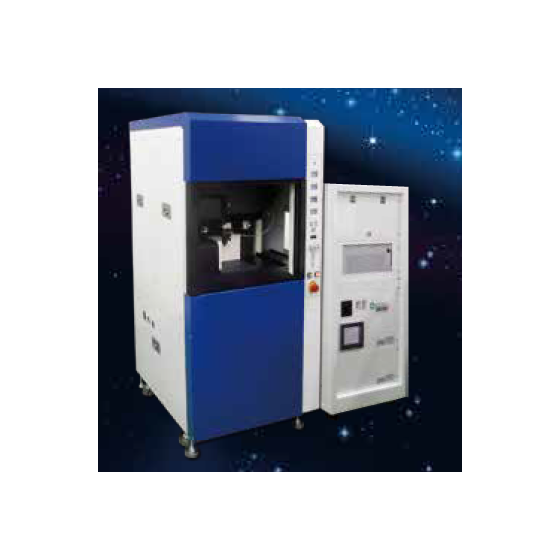

The "UA3P" is an ultra-high precision three-dimensional measuring machine that supports nano-precision manufacturing through various fine shape measurements. It achieves measurement with a precision of up to 0.01gm for aspheric lenses, freeform mirrors, and their molds, which are essential for digital home appliances such as smartphones, DSCs, DVDs, and Blu-rays, as well as for home security, optical communication, and in-vehicle HUDs. It offers a full lineup of measurements ranging from ultra-high precision measurements of ±0.08μm at an inclination angle of 70 degrees to large component measurements with a mouth size of 500mm. 【Features】 ■ Reduces the influence of the stage's perpendicularity and straightness, enabling high-precision measurements. ■ Allows high-precision scanning measurements of objects with ultra-low measuring force. ■ Capable of measuring resin products like lens barrels without deformation. ■ Achieves fast and high-precision measurements with simple operation. ■ Combines top measurement data and side measurement data to evaluate the eccentricity and tilt of the optical axis of lenses and molds based on side references. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Measurement Targets】 ■Mobile Lenses ■Lens Barrels ■DSLR Lenses ■fθ Lenses ■X-ray Telephoto Mirrors ■Lens Molds ■Camera Lenses ■Toric Lens Molds ■Stepper Lenses *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Measurement Examples (Excerpt)】 ■ Measurement on lens and mold surfaces ■ Measurement on axis-displaced mirror surfaces ■ Measurement of diffractive lens shapes ■ Measurement on freeform lens surfaces ■ Measurement of lens tool marks *For more details, please refer to the PDF document or feel free to contact us.
