Charging cradle for order terminals for restaurants, antibacterial tablet jacket.

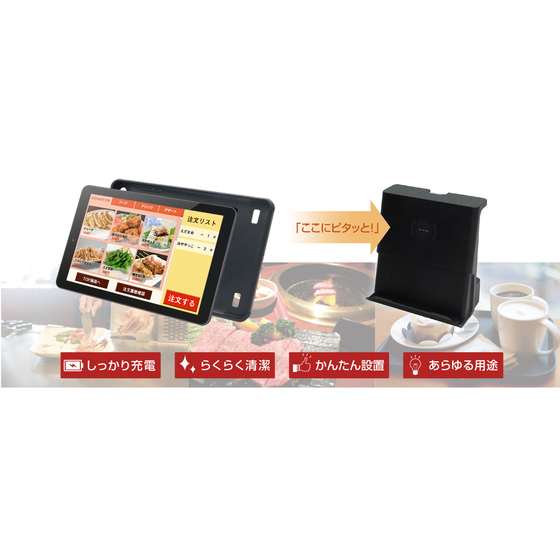

Tablet Jacket / PTJ-MC101 Charging Cradle / PDS-MC
One-touch power supply with magnetic attachment and detachment. A tablet jacket and charging cradle that can be operated stably and hygienically. (For our company's tablets only)
★With a magnet-type contact that has few irregularities, it makes perfect contact, charges securely, and is easy to keep clean★ <Main Features of the Magconn System> - With magnet-type contacts, it maintains perfect contact at all times, allowing for easy and reliable charging. - With few irregularities, it is easy to maintain and can be operated hygienically over the long term. - Disinfection by wiping with alcohol or sodium hypochlorite solution is also possible. (*For details, please refer to the related links.) - The tablet jacket that customers handle features "antibacterial performance" and a stylish design with a "bumper function" that mitigates the impact of drops. - The charging cradle has a depth of only 7.5 cm, allowing for extensive use of valuable table space. - The charging cradle can be easily installed without screws, using only magnets, without damaging tables or fixtures. - If replacing from the conventional cradle (PDS-2734A2), wiring can be done through existing cable entry holes. - If purchased simultaneously with the tablet, it can also accommodate the attachment of the tablet jacket and software installation as an option (for a fee). - In locations where an outlet cannot be provided, operation with battery charging is also possible. (*Requires a separately sold genuine battery option from Magconn.)
Inquire About This Product
basic information
■Compatible Tablets for This System - Android-based 10.1-inch: TA2C-M8, TA2C-MF9 - Windows-based 10.1-inch: TW2A-Z9LT ■Tablet Jacket / PTJ-MC101 - Compatible Charging Cradle: "PDS-MC" - Antibacterial Performance (JIS Z 2801: 2010 compliant) 99.99% reduction of Staphylococcus aureus / E. coli (after 24 hours) - Alcohol and sodium hypochlorite solution resistant: No change in base material** ■Charging Cradle / PDS-MC - Compatible Tablet Jacket: PTJ-MC series - Power Supply: USB 5V 2A-3A (AC adapter not included) - Dimensions: W121.5 × H127.0 × D74.8mm (excluding protrusions) - Weight: Approximately 250g (including wiring cover) - Alcohol and sodium hypochlorite solution resistant: No change in base material** ** The Magconn connector has a contact durability of approximately 50,000 times. The contact terminals are consumables and will incur repair costs upon deterioration. ** For other detailed specifications and testing conditions for chemical resistance, please refer to the related links.
Price information
Tablet Jacket / PTJ-MC101 JAN Code: 4580327282281 Charging Cradle / PDS-MC JAN Code: 4580327282298 (Please inquire about the price) *Please contact us. https://biz.ods.co.jp/contact.php
Delivery Time
※Please contact us.
Applications/Examples of results
- Restaurant order terminal - Service provision terminal for karaoke establishments - Guest room terminal for hotels - Customer service terminal for hotels - Inventory check terminal for sales staff in mass retailers - Prescription management terminal for pharmacies - Equipment inspection terminal for workers - Line management terminal for factories
Detailed information
-
Magconn Corporation's optional accessory: external battery
-
Magconn Corporation's optional accessory: Battery holder
-
Magconn Corporation's optional accessory: external battery charge station.
-
■Magconn Corporation's optional sold separately: Examples of operation when the option is installed.
-
<Magconn System Compatible Tablet> Android OS 8.1 Fixed, 10.1-inch for Business Terminal Use 【TA2C-M8】 ■ No need for OS version upgrades, which is the biggest drawback for business terminals! - This product operates with a fixed OS version without automatic upgrades of the Android OS (therefore, it does not support the Google Play Store or some Google services that require version upgrades). - Other Android app stores besides the Google Play Store can be used. - Apps can be displayed in full screen (so-called kiosk mode), preventing unintended operations such as setting changes, and power ON/OFF operation via a breaker is possible. ■ Basic Specifications - Android 8.1 (fixed) - Cortex-A35 MT8167B Quad-Core up to 1.3GHz - 2GB DDR4 (onboard) - 16:10 AHVA 10.1-inch Wide LCD (10-point multi-touch) - PowerVR GE8300 - Dimensions: W254×H165×D10.5mm, Weight: approximately 610g - Warranty period: 1 year
-
<Magconn System Compatible Tablet> Android OS 8.1 Fixed, Full HD 10.1-inch for Business Use 【TA2C-MF9】 ■ No need for OS version upgrades, which is the biggest bottleneck for business terminals! - This product operates with a fixed OS version without automatic upgrades of the Android OS (therefore, it does not support the Google Play Store and some Google services that assume version upgrades). - Other Android app stores besides the Google Play Store can be used. - Applications can be displayed in full screen (so-called kiosk mode), prohibiting unintended operations such as setting changes, and power ON/OFF operation can be managed via a breaker. ■ Basic Specifications - Android 8.1 (fixed) - Cortex-A35 MT8167A Quad-Core, up to 1.5GHz - 2GB DDR4 (onboard) - 10.1-inch wide LCD with 16:10 AHVA (10-point multi-touch), Full HD - PowerVR GE8300 - Dimensions: W254 × H165 × D10.5mm, Weight: approximately 610g - Warranty period: 1 year
-
<Magconn System Compatible Tablet> Windows 10 IoT Enterprise OS Compatible 10.1-inch [TW2A-Z9LT] ■ No need for OS version upgrades, which is the biggest bottleneck for business terminals! - "Windows 10 IoT Enterprise" is an OS designed for dedicated business terminals and embedded devices, allowing for long-term stable operation without major updates for functional enhancements. (Therefore, it cannot be used for general office applications.) - Suitable for long-term secure fixed-function operation with "LTSC," which only receives quality updates for 10 years after release. *Note: Windows 10 Home/Pro OS models are not supported. ■ Basic Specifications - Windows 10 IoT Enterprise 2019 LTSC 32-bit (fixed) - Intel Atom x5-Z8350 Quad-Core up to 1.92GHz - 2GB DDR3L (onboard) - 16:10 AHVA 10.1-inch wide LCD (10-point multi-touch) - Intel HD Graphics - Weight: Approximately 660g (body only)
