A safe push-start system that prevents the blade from rotating unless engaged! Comes with a convenient air dusting function!

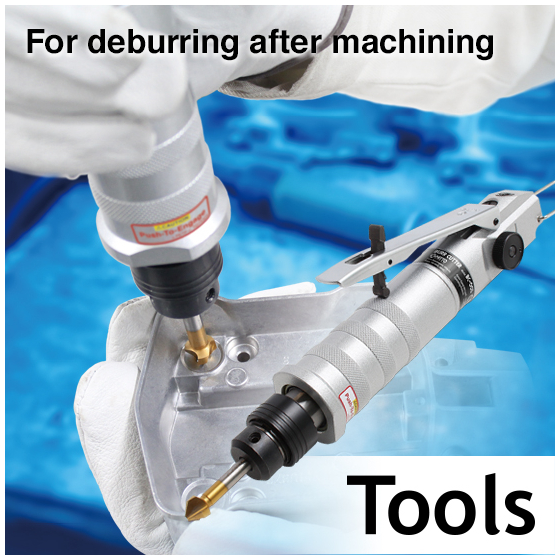

The "Bar Cutter BC-005" is an air-operated deburring machine suitable for removing burrs from holes after machining. It features an air blow function, eliminating the need to switch to an air gun. There is no need to move to a drill press, and work can be done as long as there is an air source. Additionally, its straight shape makes it easy to apply perpendicularly to holes, and it has a push-start design that prevents the blade from rotating unless it is in contact with the workpiece, ensuring safety. 【Features】 ■ Compact and lightweight ■ Straight shape allows for easy perpendicular application to holes ■ Safety design prevents blade rotation unless in contact with the workpiece ■ Work can be done as long as there is an air source ■ Equipped with air blow function *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■ Operating air pressure: 0.6MPa (6kgf/cm²) ■ Air consumption (no load): 0.22m³/min ■ Maximum rotation speed (no load): 420min⁻¹ ■ Processing hole diameter: φ3 to φ34mm ■ Compatible chamfer cutter shank diameters: φ6, φ8, φ10mm ■ Body weight: 0.75kg ■ Standard accessories ・Attachment 6 ・Attachment 8 ・Attachment 10 (mounted on the main unit) ・Hook ・Hexagonal rod wrench 2.5mm *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（3）
Download All Catalogs
Company information
The Nitto Kohki Group supports comfortable living and a prosperous tomorrow across a wide range of fields, from construction sites to the aerospace industry and environmental maintenance projects. In response to increasingly diverse needs, we address them with exceptional engineering that promotes rationalization and labor-saving. We are developing unique and user-friendly new technologies as tools to connect to the next generation.
