Excellent features and expandability! A compact wireless monitoring system that does not require a computer.

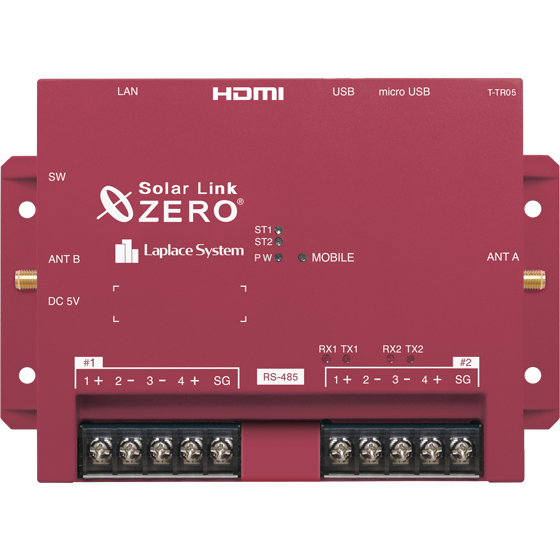

Solar Link ZERO is a compact measurement and control terminal based on a small PC. It measures and stores the status of solar power generation in real-time and also controls the inverter and equipment. Measurement and control data can be uploaded to a server via wired LAN or wireless communication, making it useful for remote monitoring and PR displays. It has high expandability and can be utilized in a wide range of scenarios by combining it with various products and options. ★Obtained JC-STAR Conformance Label (STAR-1) Solar Link ZERO has obtained the STAR-1 conformance label under Japan Cyber STAR (JC-STAR): “Labeling Scheme based on Japan Cyber-Security Technical Assessment Requirements”, a labeling scheme for IoT products led by the Ministry of Economy, Trade and Industry (METI) and the Information-technology Promotion Agency, Japan (IPA). Registered ID: 2025119900001050 【Product Lineup】 ■Solar Link ZERO T4 ■Solar Link ZERO T5 *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
【Solar Link ZERO T4】 [Features] ■ Built-in wired LAN or wireless communication (LTE) ■ Remote monitoring ■ Selectable screen styles ■ Graph display ■ Detailed fault history ■ System anomaly display ■ Report generation ■ Data storage ■ Self-consumption control ■ Output control, etc. [Specifications] ■ RAM: 4Gbyte LPDDR4-3200 SDRAM ■ Flash memory: 32Gbyte eMMC ■ Serial ports: RS-485 input/output ports x2 ■ Dimensions: W152×D102.4×H46.6mm ■ Power supply: DC5V less than 2A ■ Power consumption: 10VA ■ Operating temperature range: -20 to 60℃ (main unit) ■ Weight: approximately 300g ■ Wireless communication: LTE wireless communication (optional) ■ Contents: Compact terminal, dedicated AC adapter, dedicated USB memory, antenna *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
■ Powerful measurement that meets various needs Equipped with 2 ports of RS-485 input/output, it allows for measurement of up to 41 inverter units in 2 systems. It widely supports smart meters, analog, contact, and pulse signal measurements. The powerful measurement that meets various needs is its charm. ■ Flexible adaptation to mixed inverter models and system expansion By leveraging serial device servers for port expansion, inverter monitoring over Ethernet is made possible. ■ Response to output control requests As an output control unit, it retrieves schedules from the power company's server and commands control to the inverter. Data related to output control schedules and control can be uploaded to the server and checked from the remote monitoring screen. ■ Optimal control of self-consumption solar power generation With patented control technology, it automatically adjusts the power generation according to consumption power. It solves issues such as reverse flow and excessive control, improving power generation efficiency. ■ Control of battery charging and discharging It commands charging and discharging to the battery based on the relationship between power generation and consumption, optimizing the effective use of generated power. ■ Connection methods that can be selected based on location and situation Network connections via wired LAN or LTE communication are possible, allowing you to choose a connection method that suits the location and situation. Uploaded data can be displayed on the remote monitoring screen, among other options.
