Servo electronic creep testing machine ≪ Composite testing possible / Reproducing the environment! ≫
Servo electronic creep testing machine

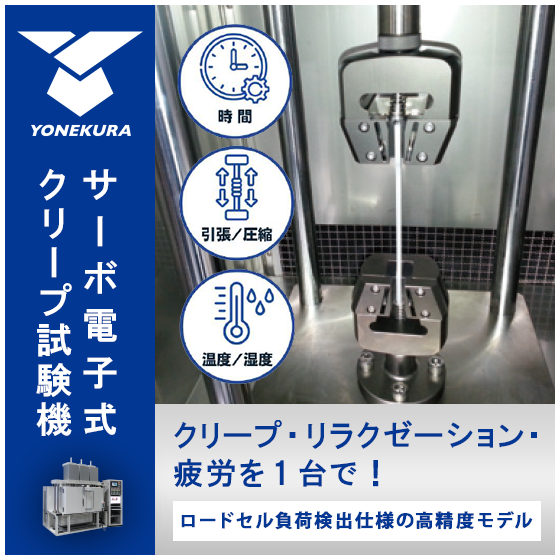

Servo electronic creep testing machine ≪Creep/Relaxation/Fatigue≫ in one unit!
This is a testing machine that applies a certain force to test specimens such as polymer materials and metals, measuring the displacement over time. - Program pattern control using a servo motor - Capable of static tests, dynamic tests, and relaxation (stress relaxation) tests - Compatible with constant temperature and humidity chambers and tubular furnaces ★☆ Expanding the range of tests! Servo motor type ☆★ Safety: Automatic switching for load changes, lightweight operation, space-saving Efficiency: Supports tensile, compression, and bending tests by changing the chuck. Control: Composite testing is possible with program pattern control. Displacement of multiple test specimens can be displayed separately/customizable chucks!
Inquire About This Product
basic information
■ Target Tests: Creep Test / Relaxation Test / Repeated Fatigue Test ■ Target Materials: Polymer materials and metals, etc. ■ Corresponding Standards Examples: Metals: JIS Z2271 / Resins: JIS K7115, K7116 / CFRP / FRP: JIS K7087, etc. ■ Testing Machine Main Body Load Method: Servo Electronic Load Motor Elevation Control: UP/DOWN Load Capacity: 10kN (Load Cell Detection) ■ Elongation Measurement Elongation Measurement Method: Encoder Maximum Displacement: Maximum Displacement of 160mm (Crosshead Movement Detection) Displacement Resolution: 0.01mm ■ Chuck Sample Hanging Method: Multi-link type * For tubular furnaces, it will be a single-link type Chuck Shape Examples: Tension: Wedge Type, Bi-type Compression / Bending: Compression Plate, 3-point Bending, 4-point Bending ■ Temperature Chamber Tubular Furnace: Temperature Range 600–1000℃ Constant Temperature Chamber: Humidity Range -40℃ to 180℃, 50℃ to 200℃ Constant Humidity Chamber: Temperature Range 20–95℃ / Humidity Range 20–98% (partially dependent on humidity conditions) * For other requests regarding standards or custom machines, various capacities, installation space, etc., please contact us. * Specifications may change depending on the test content.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Mainly for research, testing, and quality assurance departments. *We also have traditional weight-based options available, so please contact us if you have any requests.
Detailed information
-
The image shows a three-section test chamber. Values for each specimen can be confirmed. It is also possible to change to a tubular furnace according to the test conditions. Please feel free to consult with us.
catalog（4）
Download All Catalogs
News about this product（8）
Company information
Mikyo Manufacturing provides a consistent production system that develops, designs, manufactures, and supports testing machines and measurement devices tailored to the objectives and applications of customers in fields such as material research and development, as well as in accordance with material testing standards and methods. The testing machines that respond to requests from various major manufacturers and research institutions are mostly customized products. When measuring the durability of new materials, they are completely made-to-order. We also pay attention to the "usability," which varies depending on the installation location and users, and we adjust the testing machines to ensure they are optimal for each customer.
