Handles large diameters and deep holes – φ17.5 to φ100 for all-round use

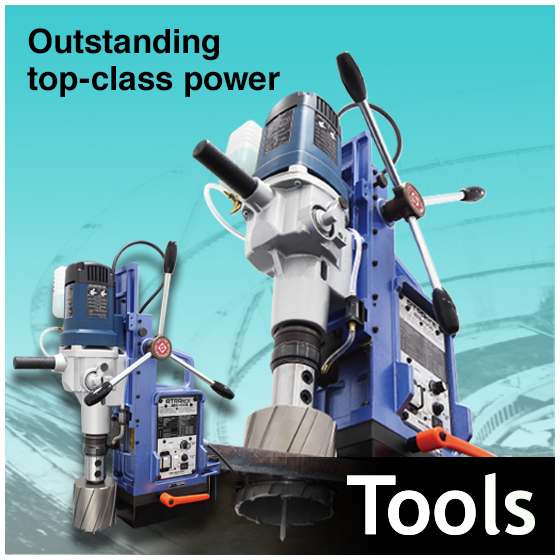

The "ATRA ACE ARA-100A" is a portable magnetic drilling machine designed for large-diameter and deep-hole manual applications. It detects overload work and lateral displacement, displaying them via LED to support smooth drilling. [Drilling Capacity] ● JETBROACH One-touch Type 25L φ17.5～φ35 Plate Thickness 13～25mm 35L φ17.5～φ40 Plate Thickness 13～35mm 50L φ17.5～φ65 Plate Thickness 13～50mm 75L φ17.5～φ55 Plate Thickness 13～75mm ● JETBROACH 75L φ50～φ100 Plate Thickness 13～75mm ● High Broach One-touch Type 25L φ17.5～φ35 Plate Thickness 13～25mm ● Twist Drill Maximum φ32
Inquire About This Product
Related Videos
basic information
[Specifications: Main Unit] Japanese domestic version Power Supply: AC 200 V, Single-phase 50/60 Hz Magnet Power Consumption: 80 W Maximum Magnetic Force: 17000 N (1732 kgf) Magnet Dimensions: 110 mm × 220 mm Cabtyre Cable: 5 m Mass (Weight): 30 kg [Specifications: Electric Drill] Rated Power Consumption: 1800 W Rated Current: 9 A No-load Speed: 110–210/330–660 rpm
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
