IP67 dust and water proof mobile PV systems

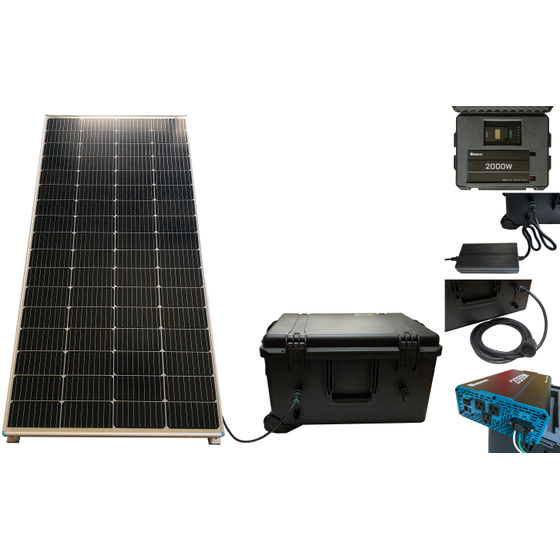

Product Summary ■Mobile PV systems with mono crystalline solar panels and semi-solid-state or LiFePO4 battery compartments designed for powering a broad range of appliances. Composed of ultra-thin, light yet impact resistant and highly efficient solar panels and safe, weather-resistant, high-energy-density and long life battery compartments for ultimate versatility, expandability, portability, weather resistance and durability in business, disaster preparedness, leisure and everyday living. Applications ■Charging the built-in semi-solid-state or LiFePO4 battery by sunlight, and powering a broad range of appliances through AC100V (inverter outlet, dust and water proof connectors), DC5V (USB, USB Type-C), DC9V (USB Type-C), DC12V (USB Type-C, charge controller terminals, dust and water proof connectors) output. A built-in nightlight function can control DC12V load such as LED light at night and is widely programmable.
Inquire About This Product
basic information
Features ■Light yet impact resistant flexible solar panels or a solar panel with dettachable tilt mount for adjusting the best angle with highly efficient mono crystalline solar cells. ■Detachable mil-spec Cordura Nylon shoulder straps and mounting holes with grommets for easy carrying and a variety of mounts. ■Dettachable tilt mount for adjusting the best angle. ■Built-in long-life lithium iron phosphate battery capable of 3000 to 5000 charge-discharge cycles. ■built-in semi-solid-state LiFePO4 batteries which offer safety, weather resistance capable of charging and discharging at temperatures as low as -20ºC, high energy density, and a long service life of 6,000 charge-discharge cycles. ■IP67 dust and water proof Pelican Cases with fail-safe automatic pressure equalization valves. Equipped with detachable shoulder straps or retractable extension handles and strong polyurethane wheels with stainless steel bearings for easy carrying. ■Built-in MPPT charge controller with nightlight functions accept solar panels with up to 100V of Voc and 520W of Pm. ■Free "DC Home" App for monitoring power generation, charging/discharging current and SOC of the battery by smartphones available from "App Store" and "Google Play". ■Equipped with 1000W or 2000W pure sine wave DC-AC inverter with AC100V outlets and DC5V USB receptacles. ■The batteries can be charged worldwide by accessory AC chargers with AC100V-240V, 50/60 Hz input. ■Various solar panels with up to 100V of Voc and 520W of Pm can be connected with MC4 Conversion Cables (sold separately). ■Dust and water proof power supply to appliances with AC100V input with AC100V Output Cables. ■Dust and water proof power supply to appliances with DC12V input with DC12V Output Cables (sold separately). ■2 input connectors for DC Power Cables (sold separately) to double the output capacity to power appliances with power consumption up to 200W. ■IP68 dust and water proof connectors mating with solar panels, Extension Cables, AC100V Output Cables, DC12V Output Cables, DC Power Cables and MC4 Conversion Cables for weather resistant outdoor installations. ■Custom systems available, such as additional input/output connectors, different cases, built-in appliances and accessories.
Price information
JPY68,800 to JPY522,800 (including tax)
Price range
P3
Delivery Time
※14 days
Applications/Examples of results
Custom systems available, such as additional input/output connectors, different cases, built-in appliances and accessories.
Detailed information
-
Solar Gear "SG12-M50SPM-B10LIM"
catalog（1）
Download All Catalogs
Company information
Our company is a specialized manufacturer of small solar cell modules and independent solar power generation systems, established in 2000. In addition to our own brand of consumer-oriented portable systems, the "Solar Gear" series, we produce various industrial and commercial thin and lightweight modules and independent systems that supply power to low-power devices such as communication and network equipment, sensors, monitoring devices, and lighting. Moving forward, we will actively contribute to the preservation of the global environment and the realization of a circular economy and low-carbon society by promoting the transition of energy systems from fossil fuels to renewable energy and from centralized and grid-connected systems to decentralized and independent systems through the pursuit of innovative technologies in solar cell modules and their application products.
