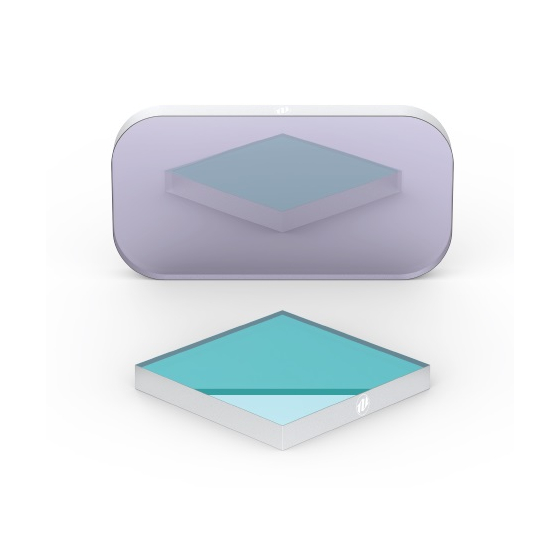

It is a dichroic mirror with IBS coating that has a UV range high reflectance of over 99% and transmits red and near-infrared light.
Manufacturer: OPTOMAN (Lithuania) Thanks to cutting-edge IBS coating technology, we achieve excellent features such as high damage threshold, low absorption, and low scattering. OPTOMAN offers custom products tailored to your needs. ◆ Specifications ◆ Substrate material: UVFS Diameter: 25.4 mm +0/-0.1 mm Thickness: 6.0 mm +/-0.1 mm Coatings (IBS, S1 understood as S1+S2 performance): S1 (arrow marks): HRs>99% @ 345 - 420 nm + HTp>95% @ 690 - 840 nm + 1500 - 2000 nm + HTs>80% @ 1380 - 1700 nm, AOI=60 deg Low GDD Rs <30 fs² @ 345 - 420 nm, AOI=60 deg S2: ARp @ 690 - 840 nm + ARs @ 1380 nm - 1700 nm, AOI=60 deg
Inquire About This Product
Related Videos
basic information
For details, please refer to the data sheet.
Price range
Delivery Time
Applications/Examples of results
● High-power laser ● Laser processing equipment
