You can connect up to 16 stationary master units ST#747CS to the main device ST#747BS, allowing for simultaneous two-way communication with a maximum of 64 units, including portable subunits!

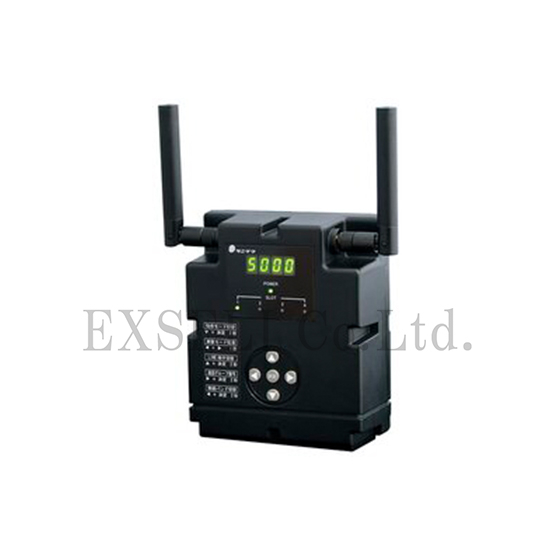

The ST#747CS (ST747CS) is a digital wireless intercom desktop master unit manufactured by Tanizawa. The desktop master unit ST#747CS has four communication slots for connecting with subunits, allowing for simultaneous two-way communication with a total of five devices, including four portable subunits ST#747M-H. Additionally, there is no limit on the number of transmissions to the receiving-only subunit ST#747M-H. Furthermore, up to 16 desktop master units ST#747CS can be connected to the main unit ST#747BS, and if each master unit is connected to four portable subunits ST#747M-H, a maximum of 64 simultaneous two-way communications is possible. The connection to the main unit ST#747BS allows for seamless handover. When setting the wireless channels, this unit allows for the configuration of "band" and "hopping pattern." There is no concept of channel numbers. The wireless communication channels of this unit are divided into three bands within the 2.4GHz range, and the master unit side sets which band will be used for communication. Each band has many channels, and within each band, a communication method called frequency hopping spread spectrum is used, which rapidly changes the frequency (channel) of the radio waves transmitting data.
Inquire About This Product
basic information
● There are characteristics of the frequency band used. In addition to the conventional wireless LAN frequency band of 2.412 to 2.462 GHz, it also uses the 2.484 GHz band (14ch, STD-13), which does not overlap with wireless LAN, allowing for stable communication even in environments where WiFi is congested. ● There is one external input/output line (LINE1). ● A Canon 5-pin connector is used for the LINE terminal of the external input/output. ● The antenna connector on the radio side is SMA-J. ● The manufacturer's warranty period is one year. ● Specifications ・Dimensions: Height 144mm × Width 122mm × Depth 54mm (excluding protrusions) ・Weight: Approximately 430g (excluding antenna) ・Operating power supply voltage: DC 10V to 32V ・Current consumption: 0.5A or less ・Antenna impedance: 50Ω ・Line specifications: 4W input range -30 to +20 dBm/600Ω, output range no signal to +20 dBum/600Ω *For more details, please refer to the PDF document or feel free to contact us.
Price information
Manufacturer's suggested retail price: Open price *We will sell at a discount lower than anywhere else, so please contact us for our selling price.
Price range
P3
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Sports event management ■ Skiing, snowboarding ■ Baseball stadium ■ Shopping mall ■ Crisis management ■ Neighborhood associations ■ Firefighting and fire brigades ■ Wedding venues, bridal planners ■ Community events ■ Condominium management associations, management companies ■ Security ■ Home improvement stores ■ Snow removal vehicles ■ Industrial waste ■ Construction ■ Demolition industry ■ Comic Market and events ■ Amusement facilities ■ Childcare centers, nurseries, kindergartens ■ Shareholder meetings ■ Moving ■ Hotels, inns ■ Fire safety equipment inspections, building maintenance ■ Electrical work, air conditioning work ■ Factories ■ Wildlife capture and animal protection ■ Hunting ■ Movie theaters, cinema complexes ■ Exhibitions ■ Warehouses ■ Gas stations ■ Funerals ■ Retail stores ■ Concert halls ■ Outdoors ■ Broadcasting stations ■ Offices ■ Maintenance garages ■ Aircraft maintenance ■ Schools ■ Railways ■ Cleaning ■ Casinos ■ Lead vehicles, guiding vehicles ■ Art museums, museums, etc.
