Connect up to 16 stationary parent units ST#747CS, allowing for simultaneous intercom communication with up to 64 child units ST#747M-H!

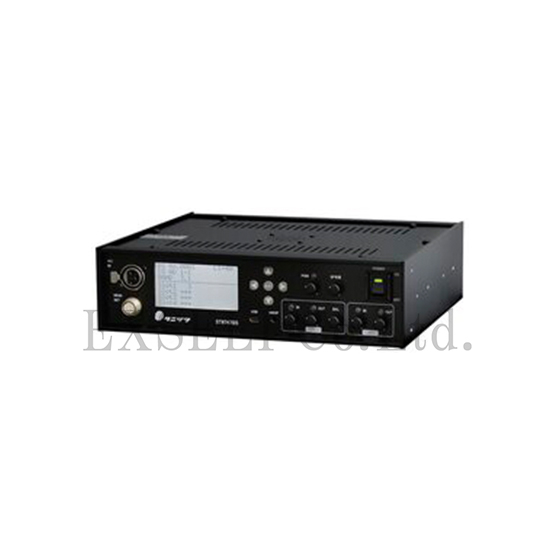

The ST#747BS (ST747BS) is a digital wireless intercom main unit manufactured by Tanizawa. It can be connected to up to 16 stationary parent units ST#747CS and a maximum of 64 child units ST#747M-H for simultaneous two-way communication. *It cannot be connected to the portable parent unit ST#747SS. The ST#747BS is equipped with four CS input terminals. By connecting stationary parent units, power supply and communication are established. Up to 4 stationary parent units can be connected in cascade for each line, totaling 16 units. Additionally, the total cable length per line can be up to 400m (the maximum extension distance between the main unit and the first stationary parent unit, as well as among stationary parent units, is 150m). It is suitable for wide-area sites. *Recommended cables: L-4EC, DA206 (both manufactured by Canare Electric). When multiple stationary parent units are cascaded to this main unit, the child units connected to one parent unit can seamlessly hand over to another parent unit without interruption of communication when moving. Up to 6 main units ST#747BS can be linked together. Communication between parent and child units is managed through multiple external audio input/output terminals.
Inquire About This Product
basic information
● The combination of output and input audio is set in a matrix. By turning ON/OFF the cross points of 6 input items and 6 output items, you can connect/disconnect the audio. ● The external input/output consists of 2.5 systems (2 LINE systems + PGM). ● The power supply operates at a voltage of DC10V to 32V, with a maximum current consumption of 15A (which varies depending on the number of connected main units and the voltage used). It can be connected to the separately sold AC adapter ST#7ACA-42 (DC12V/for 4 or fewer stationary main units) or the separately sold AC adapter ST#7ACA-43 (DC24V/for 5 or more stationary main units) to operate from a household power supply of AC100V. ● It comes with a simple melody function (2 systems). ● The volume level of the external input/output is displayed by the color change of the lamp. ● It has a built-in 1W speaker. The impedance when using an external speaker is 8Ω or more. ● It is equipped with a 3.5φ mono jack, allowing the use of headphones. ● The manufacturer's warranty period is 1 year. ● Specifications: - Dimensions: Height 70mm × Width 260mm × Depth 230mm - Weight: Approximately 2.35kg * For more details, please refer to the PDF document or feel free to contact us.
Price information
Manufacturer's suggested retail price: Open price *We will sell it at a discount lower than anywhere else, so please contact us for our selling price.
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Sports event management ■ Skiing, snowboarding ■ Baseball stadium ■ Shopping mall ■ Crisis management ■ Neighborhood associations ■ Firefighting and fire brigades ■ Wedding venues, bridal planners ■ Street parties ■ Condominium management associations, management companies ■ Security ■ Home centers ■ Snow removal vehicles ■ Industrial waste ■ Construction ■ Demolition industry ■ Comic Market and events ■ Amusement facilities ■ Childcare centers, nurseries, kindergartens ■ Shareholder meetings ■ Moving ■ Hotels, inns ■ Fire safety equipment inspections, building maintenance ■ Electrical work, air conditioning work ■ Factories ■ Wildlife capture and animal protection ■ Hunting ■ Movie theaters, cinema complexes ■ Exhibitions ■ Warehouses ■ Gas stations ■ Funerals ■ Retail stores ■ Concert halls ■ Outdoor ■ Broadcasting stations ■ Offices ■ Maintenance garages ■ Aircraft maintenance ■ Schools ■ Railways ■ Cleaning ■ Casinos ■ Lead vehicles, guiding vehicles ■ Art museums, museums, etc.
