Nerve-Sensors Fiber Optic Sensor Cable for Civil Engineering Applications

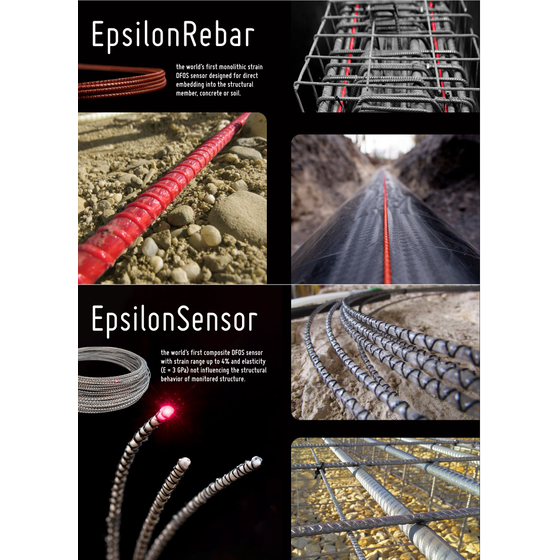

Epsilon Series
High weather-resistant composite fiber optic distributed sensor cable that can be embedded in concrete and soil!
The Epsilon series optical fiber sensor cable from Nerve-Sensors SHM is a highly weather-resistant fiber sensor cable that addresses challenges in the construction field related to the application of existing optical fibers and multilayer coated optical fibers (such as alkaline degradation of coating resins and slipping of multilayer materials). It features a composite structure with a thick epoxy resin coating and spiral processing using reinforcing materials, enhancing weather resistance and mechanical strength against moisture and alkaline environments, making it suitable for direct burial in concrete and soil. The sensor measurement instruments used in combination are based on OTDR systems, which have low dependency on manufacturers and models, allowing them to meet various requirements such as new installations and additional sensors at existing sites. The primary measurement parameters are mechanical strain and displacement, with options available for optimized temperature measurement. Particularly strong in alkaline environments of concrete and ensuring mechanical strength, this product is highly useful for monitoring the health and condition of large infrastructure structures (such as roads, bridges, tunnels, and dams) as well as for monitoring soil landslides and subsidence. Recently, its growing recognition and practical deployment speed in the European market have garnered attention.
Inquire About This Product
basic information
Main common specifications, etc.: 1. Long-term monitoring of various structures and soil health in the construction field, 2. Combination operation measuring instruments and OTDR-type optical sensor measuring instruments (for distributed measurement), 3. Detection targets: strain, displacement, temperature, 4. Strain detection resolution: 1.0 με 1. Epsilon Rebar: Diameter φ5–20mm (standard 5mm), operating temperature range -20 to +100℃ 2. Epsilon Sensor: Diameter φ3–80mm, operating temperature range -20 to +80℃
Price information
Prices may vary depending on specifications, length, and packaging.
Delivery Time
※Standard approximately 1 month. Delivery times may vary depending on the product, length, and packaging.
Applications/Examples of results
Monitoring the integrity of large structures such as roads, bridges, railways, tunnels, dams, and pipelines, as well as monitoring the conditions of landslides and subsidence.
