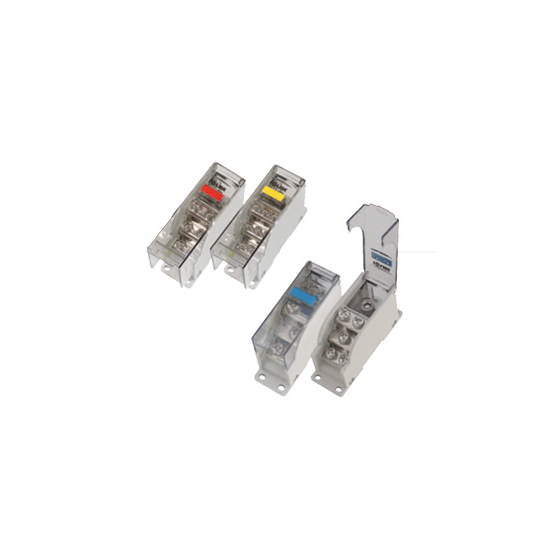

Space-saving with the same width as a breaker! Comes with various color-coded plates for installation according to your needs! Wiring-type power distribution block.
<Space-saving and Reduction of Work Hours> ◎ Achieves space savings with the same width as the breaker ◎ Allows for screw fastening and DIN rail mounting, making installation and maintenance easy ◎ Comes with various color-coded plates that can be installed according to user needs <Improved Safety During Work> ◎ Terminal slip-resistant V-groove makes it less likely to fall off ◎ Protective cover installed on the input side ◎ Hinge-type window structure facilitates wiring, and the Safety Window type further enhances electrical safety
Inquire About This Product
basic information
Price range
Delivery Time
Applications/Examples of results
Line up（13）
| Model number | overview |
|---|---|
| SPS25-M6/3*M5-□ | Rated capacity: UL: 600V 100A / CE: 600V 75A, pitch: 25mm, [Input side] Rated (IEC wire): 25㎟ (100A) terminal screw: M6 x 1, [Output side] Rated (IEC wire): 4–16㎟ (total 100A or less) terminal screw: M5 x 3 |
| SPS25-M6/6*M4-□ | Rated capacity: UL: 600V 100A / CE: 600V 75A, pitch: 25mm, [Input side] Rated (IEC wire): 25㎟ (100A) terminal screw: M6 x 1, [Output side] Rated (IEC wire): 1.5–4㎟ (total 100A or less) terminal screw: M4 x 6 |
| SPS25-M6/M6+2*M4-□ | Rated capacity: UL: 600V 100A / CE: 600V 75A, pitch: 25mm, [Input side] Rated (IEC wire): 25㎟ (100A) terminal screw: M6 x 1, [Output side] Rated (IEC wire): M6: MAX 25㎟ M4: 1.5~4㎟ (total 100A or less) terminal screw: M6 x 1 M4 x 2 |
| SPS30-M6/3*M6-□ | Rated capacity: UL: 600V 125A / CE: 600V 100A, pitch: 30mm, [Input side] Rated (IEC wire): 35㎟ (125A) terminal screw: M6 x 1, [Output side] Rated (IEC wire): 6–16㎟ (total 125A or less) terminal screw: M6 x 3 |
| SPS30-M6/6*M5-□ | Rated capacity: UL: 600V 125A / CE: 600V 100A, pitch: 30mm, [Input side] Rated (IEC wire): 35㎟ (125A) terminal screw: M6 x 1, [Output side] Rated (IEC wire): 4–16㎟ (total 125A or less) terminal screw: M5 x 6 |
| SPS30-M6/M6+2*M4-□ | Rated capacity: UL: 600V 125A / CE: 600V 100A, pitch: 30mm, [Input side] Rated (IEC wire): 35㎟ (125A) terminal screw: M6 x 1, [Output side] Rated (IEC wire): M6: MAX 35㎟ M4: 1.5~4㎟ (total 125A or less) terminal screw: M6 x 1 M4 x 2 |
| SPS35-M8/5*M6-□ | Rated capacity: UL: 600V 150A CE: 600V 150A, pitch: 35mm, [Input side] Rated (IEC wire): 50㎟ (150A) terminal screw: M8 x 1, [Output side] Rated (IEC wire): 6–16㎟ (total 150A or less) terminal screw: M6 x 5 |
| SPS35-M8/6*M5-□ | Rated capacity: UL: 600V 150A CE: 600V 150A, pitch: 35mm, [Input side] Rated (IEC wire): 50㎟ (150A) terminal screw: M8 x 1, [Output side] Rated (IEC wire): 4–16㎟ (total 150A or less) terminal screw: M5 x 6 |
| SPS35-M8/9*M4-□ | Rated capacity: UL: 600V 150A CE: 600V 150A, pitch: 35mm, [Input side] Rated (IEC wire): 50㎟ (150A) terminal screw: M8 x 1, [Output side] Rated (IEC wire): 2.5–4㎟ (total 150A or less) terminal screw: M4 x 9 |
| SPS35-M8/M8+3*M4-□ | Rated capacity: UL: 600V 150A CE: 600V 150A, pitch: 35mm, [Input side] Rated (IEC wire): 50㎟ (150A) terminal screw: M8 x 1, [Output side] Rated (IEC wire): M8: MAX 50㎟ M4: 1.5~4㎟ (total 150A or less) terminal screw: M8 x 1 M4 x 3 |
| SPS45-M8/9*M5-□ | Rated capacity: UL: 600V 200A CE: 600V 175A, pitch: 45mm, [Input side] Rated (IEC wire): 90㎟ (200A) terminal screw: M8 x 1, [Output side] Rated (IEC wire): 4–16㎟ (total 200A or less) terminal screw: M5 x 9 |
| SPS45-M8/12*M4-□ | Rated capacity: UL: 600V 200A CE: 600V 175A, pitch: 45mm, [Input side] Rated (IEC wire): 90㎟ (200A) terminal screw: M8 x 1, [Output side] Rated (IEC wire): 2.5–4㎟ (total 200A or less) terminal screw: M4 x 12 |
| SPS45-M8/M8+4*M4-□ | Rated capacity: UL: 600V 200A CE: 600V 175A, pitch: 45mm, [Input side] Rated (IEC wire): 90㎟ (200A) terminal screw: M8 x 1, [Output side] Rated (IEC wire): M8: MAX 90㎟ M4: 1.5~4㎟ (total 200A or less) terminal screw: M8 x 1 M4 x 4 |
