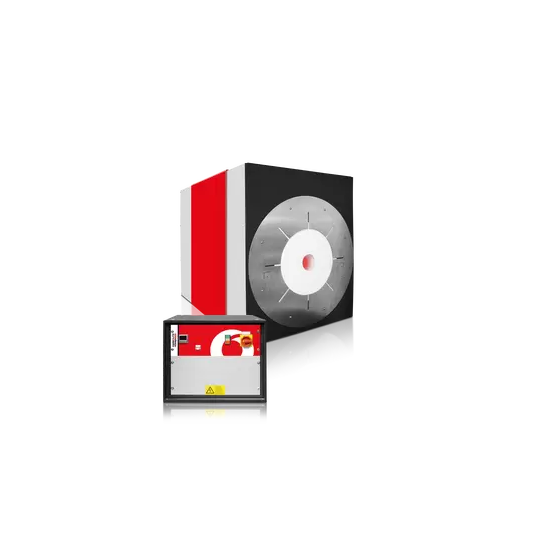

The Carbolite Gero high-temperature tube furnace HTRH can be used horizontally at a maximum temperature of 1800°C.
High-quality insulation materials with low thermal conductivity enable low energy consumption and rapid heating. The insulation material and molybdenum disilicide (MoSi2) heater element are housed in a rectangular casing. The heater element is suspended vertically, making it easy to replace. At high temperatures and in the presence of oxygen, MoSi2 forms an oxide layer (SiO2) that protects the heater element from thermal and chemical corrosion. The 3-zone tube furnace (HTRH-3) achieves higher uniformity compared to single-zone products. These models are equipped with dedicated thermocouples and temperature controllers for each heating zone, making them particularly convenient for preheating gases necessary for reactions within the system. The HTRH does not come with a working tube built-in. The working tube can be selected as an additional accessory. The length of the working tube varies depending on the application and whether a modified atmosphere or vacuum is used.
Inquire About This Product
basic information
Standard Specifications • Maximum operating temperature 1800 °C • 24-segment programmable temperature controller - HTRH is equipped with Carbolite Gero EPC3016P1 - HTRH-3 is equipped with Carbolite Gero CC-T1 • Overheat prevention function • Suitable working pipe outer diameter (under atmosphere) 100 mm or less • Suitable working pipe outer diameter (under atmospheric pressure) 200 mm or less • Heating lengths of 100 mm / 250 mm / 300 mm / 600 mm • High-grade Type B thermocouple • Low heat capacity insulation made of ceramic fiber • Heating elements installed in a U-shape from the top of the furnace are made of high-quality disilicide molybdenum • Ventilation holes for convection cooling installed in a rectangular housing • Heating area can be selected from 1 zone and 3 zones • Control module connects to the furnace body with a 3 m long cable, plug, and socket • NEW Ethernet communication function
Price range
Delivery Time
Applications/Examples of results
Horizontal and vertical dual-purpose tube furnace
