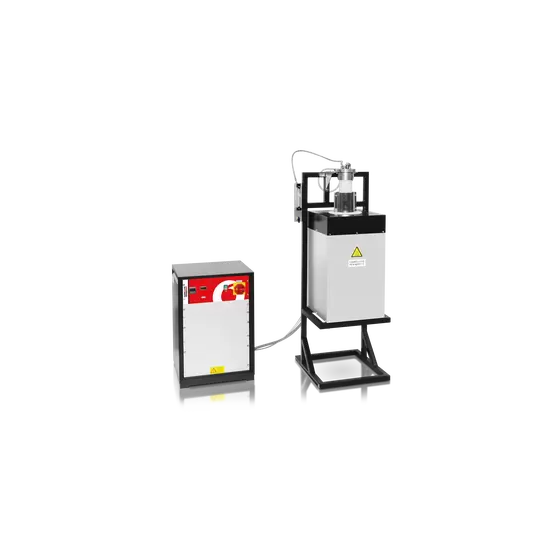

HTRV is a high-temperature tube furnace designed for vertical use, with a maximum temperature of 1800°C.
High-grade insulation made of fiber plates has a low thermal conductivity, achieving reduced energy consumption and improved heating rates. The insulation material and the heating element made of molybdenum disilicide are built into a rectangular housing. The heating element is installed vertically and is easy to replace. When oxygen is present at high temperatures, molybdenum disilicide forms a layer of oxide, protecting the heating element from further thermal and chemical corrosion. The HTRV series, equipped with a wide range of accessories, provides a perfect system solution for advanced heat treatment at high temperatures. It is designed as standard without a stand for installation on your own equipment. An optional L-shaped stand is available for independent use.
Inquire About This Product
basic information
Standard Specifications • Maximum operating temperature 1800 °C • Carbolite Gero EPC3016P1 programmable temperature controller (24 segments) • Independent thermocouple over-temperature protection function • Ideal for vertical installation • Suitable working tube outer diameter (under atmospheric conditions) less than 100 mm • Suitable working tube outer diameter (under ambient conditions) less than 200 mm • Heating lengths of 100 mm / 250 mm / 500 mm • High-grade type B thermocouple • Low thermal mass insulation made of ceramic fiber • Heating elements installed in a U-shape from the top inside the furnace are made of high-quality disilicide molybdenum • Ventilation holes for convection cooling installed in a rectangular housing • Control module connects to the furnace body with a 3m long cable, plug, and socket • NEW Ethernet communication function
Price range
Delivery Time
Applications/Examples of results
Horizontal and vertical dual-purpose tube furnace
