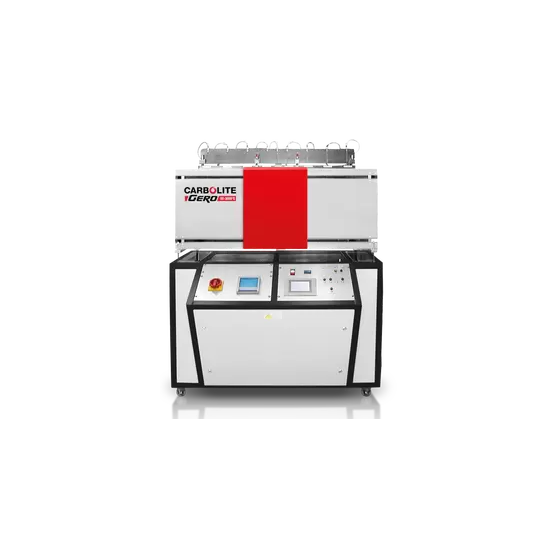

AZ is an excellent 8-zone tube furnace for controlling temperature profiles.
The 8 zones, with thick insulation and high-symmetry heating elements built into the entire furnace, achieve temperature uniformity within ± 5°C. The advantage of individually controlling the 8 zones is that it is important for extending the thermal length within the furnace. Additionally, the temperature profile can be precisely and freely controlled by the user, either rising linearly or peaking. The optimal application for AZ is, for example, chemical vapor deposition. It can create a temperature gradient where precursor materials are evaporated in the high-temperature end zone and vapor is condensed onto the substrate in the low-temperature end zone. All zones are controlled and monitored by individual thermocouples.
Inquire About This Product
basic information
Standard Specifications • Structure similar to FHA / FHC tube furnaces • 8-zone control to accommodate various heating profiles • Ability to linearly increase/decrease temperature along the heating length or apply multiple gradients • Excellent temperature distribution • High heating/cooling rates • Automatic operation • Data recording function for quality control • Resending of set values • Overheating prevention function for independent thermocouples
Price range
Delivery Time
Applications/Examples of results
8 Zone Tube Furnace
