Tohoku University Technology: Radio wave reflector and backscatter communication method: T21-028
Reflection of radio wave in the direction of incident radio wave

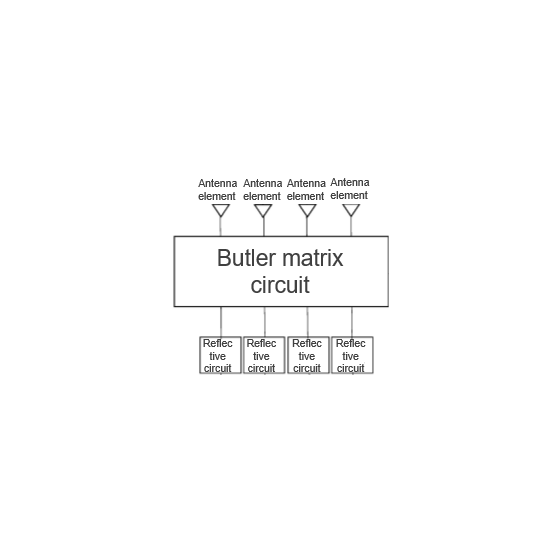

In backscatter communication such as radar or radio frequency identifier (RFID) system, the received power decreases with the communication distance. To extend the communication range, it is necessary to increase the radar cross section of the target in the case of radar, and to increase the tag antenna gain in the case of RFID system. However, in both cases, it is not easy to reflect radio wave toward the arrival direction because the target to reflect radar signal and the arrival direction of the signal to reflect are not known. This invention is able to reflect radio wave in the direction in which the incident radio wave arrives by using a small radio wave reflector. This invention has an antenna element, a reflective circuit and a butler matrix circuit. When the reflection circuit receives an incident radio wave input from the antenna element via the butler matrix circuit, it sends out a reflected radio wave in the direction in which the incident radio wave arrived via the butler matrix circuit and antenna element. This small radio wave reflector allows radio wave to reflect in the direction in which the incident radio wave arrived.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
