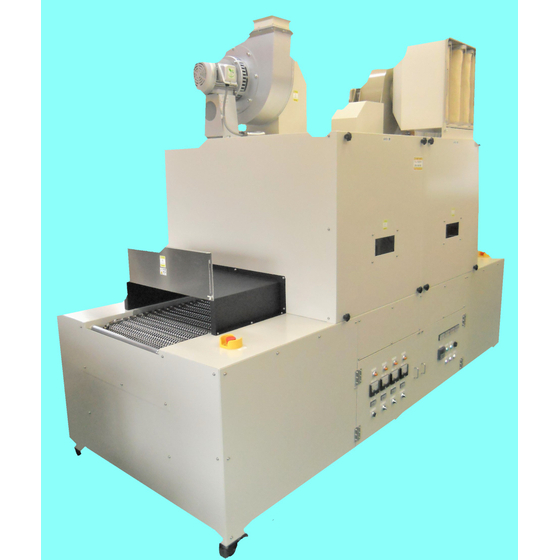

This is a UV irradiation device designed to efficiently and uniformly irradiate woodworking products.
This device aims to efficiently and uniformly irradiate workpieces conveyed by a conveyor with ultraviolet light (365nm). The irradiation chamber is equipped with four 4000W irradiators. The irradiators that house the lamps are equipped with special aluminum mirrors that efficiently reflect and focus ultraviolet light, and the irradiation distance can be adjusted within a range of 100 to 400mm. The conveying section uses a SUS net belt, and the conveying speed can accommodate up to a maximum of 20m/min.
Inquire About This Product
basic information
Configuration UV Device: 1 unit Stabilizer (4kW Mercury Stabilizer): 4 units Irradiator (Aluminum Mirror Specification): 4 units UV Lamp (High-Pressure Mercury Lamp): 4 pieces Intake Blower (1kW): 1 unit Exhaust Blower (1kW Heat-Resistant Type): 1 unit Conveyor Motor (3Φ 200V 0.2kW): 1 unit Accessories: Intake Filter ☐ 500×250mm *The quantities are per UV irradiation device. Please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Please feel free to contact us.
Company information
Our company was established in 1989 with the hope that ultraviolet light would contribute to the industrial sector. We handle products such as "Cosmo Handy," which is used for repairing hard coatings on store counters and tables, and the "UV/O3 Cleaning and Modification Device," which performs precision cleaning and modification using short-wavelength ultraviolet light and the ozone generated by it. Please feel free to contact us if you have any inquiries.
