For the chemical industry: Stabilization of discharge volume 【【Gear Pump Unit】】

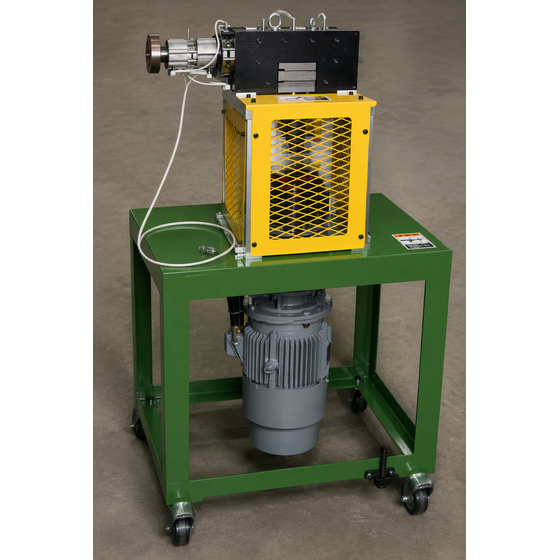

Gear pump unit
To a more accurate discharge volume delivery.
A gear pump is a pump that has a gear structure and is widely used in industry. It is used in equipment with hydraulic systems, such as hydraulic excavators and forklifts. There are few contact points other than the gears and casing, making disassembly relatively easy, and it is used in a wide range of industries. Our company is capable of designing and manufacturing units that use gear pumps. *Please note that we will use purchased gear pumps.
Inquire About This Product
basic information
Example [When using φ40 extruder] Capacity: 6cc/rev Material: SKH51, S45C, SS400, etc. Rotation speed: MAX 50rpm Main drive: Servo motor 1.0kW Ambient temperature: 220°C Temperature control range: GP Pressure sensor holes: One at the front and one at the rear of the gear Resin pressure control: To maintain a constant GP inlet pressure, FB control is implemented on the extruder screw rotation speed *Please note that depending on the specifications of the extruder in use, FB control may not be possible. Thank you for your understanding.
Price information
It varies depending on the capacity and resin. We would appreciate it if you could contact us once.
Delivery Time
Applications/Examples of results
Proven track record in the chemical industry.
Company information
PLABOR offers a wide range of products and services, focusing on plastic processing machines, film/sheet molding equipment, and tube/pipe molding equipment, as well as various manufacturing devices and manufacturing technologies. We also provide solution services that propose and supply various molding lines for extruders. Please feel free to contact us if you have any inquiries.
