From application to measurement, all in one device. Dramatically streamline the inspection process for catalyst ink evaluation.

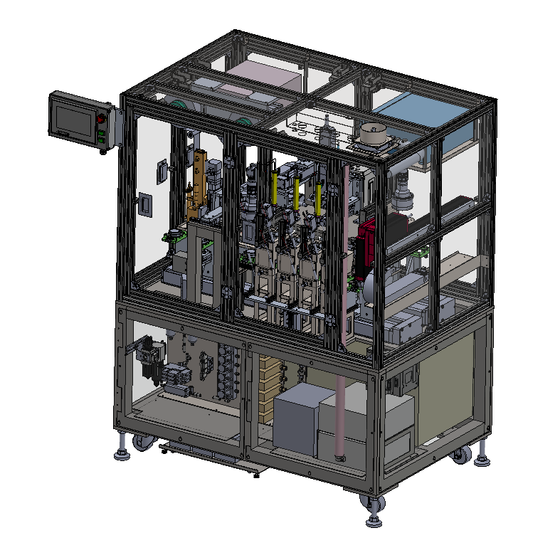

This is a device that applies catalyst ink to a transport fixture and measures the film thickness, size, and impedance of the applied ink. 【Operation Flow】 Catalyst ink application ↓ Transport to inspection mechanism ↓ Drying ↓ Image inspection ↓ Resistance measurement ↓ Discharge ↓ Evaluation (automatically searches for optimal values.) Rise One Co., Ltd. is "From design to beyond (maintenance/improvement). Everything about FA equipment, with one team." "Turning 'what you want' into reality and protecting it forever. Your one-stop partner for FA equipment."
Inquire About This Product
basic information
■Drying Unit: Temperature and Pressure Control ■Evaluation Unit: Image Inspection, Surface Roughness Inspection, Film Thickness Measurement, Impedance Measurement ■Surface Roughness Measurement and Film Thickness Measurement Unit: Interferometer, Drive Mechanism Y-axis, Parallel Delivery Stage ■Impedance Measurement Unit: Impedance Analyzer, Drive Mechanism Z-axis
Price range
Delivery Time
Applications/Examples of results
It is a device that applies catalyst ink, automatically measures film thickness, appearance, and resistance, and automatically searches for the optimal conditions for film thickness and drying state.
Company information
[Delivering optimal on-site solutions through a one-stop service—from developing unique equipment not found on the market to retrofitting existing systems] Rise One provides custom-made automation and labor-saving systems to clients across a wide range of industries. Our offerings span from automotive inspection systems and ECU testers to factory automation (FA) equipment for semiconductor manufacturing, card production, and image inspection. Whether you need to build specialized machinery or retrofit existing equipment to save labor and reduce energy consumption, our experienced technical team provides comprehensive support—covering everything from hardware and software design to manufacturing, assembly, and maintenance. We excel at solving on-site challenges that off-the-shelf products cannot address. Please consider partnering with us for your manufacturing needs.
