Provides clean, oil-free compressed air — suitable for drip coffee machines and more.

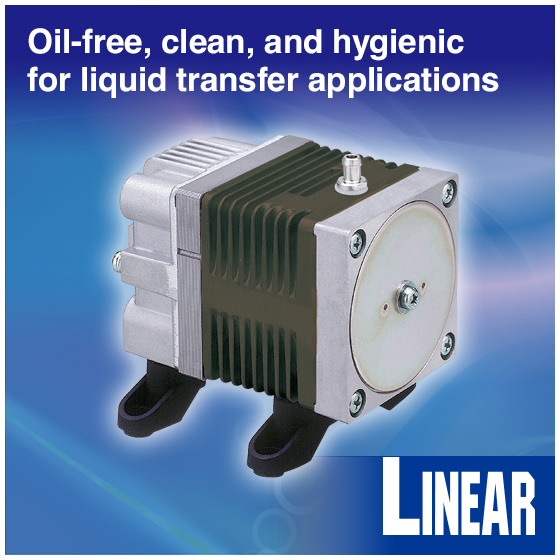

This is a compressor with a linear-motor-driven free piston system. The linear-motor-driven free piston system, which reciprocates the cylinder piston using the attractive force of an electromagnet and the restoring force of a spring, achieves low vibration and low noise level, and can be used in a wide range of industries such as drip coffee machines and blood pressure monitors. [Features] ■Compact and lightweight ■Low noise level ■Low vibration ■Oil-free/Clean ■Reduced pulsation and more.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Rated Pressure: 20 kPa ■Rated Airflow: 5 L/min ■Rated Frequency: 50/60 Hz ■Maximum Pressure: 40 kPa ■Power Consumption: 15/14 W ■Rated Time: Continuous ■Rated Performance (MTTF): 10000 hours ■Mounting Dimensions: 48 (L) × 62 (W) mm ■Weight: 0.7 kg Models for 115 V AC, 230 V AC, and 100 V AC are available
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
