【Incredible performance】Covers the required area of two existing units with one unit.

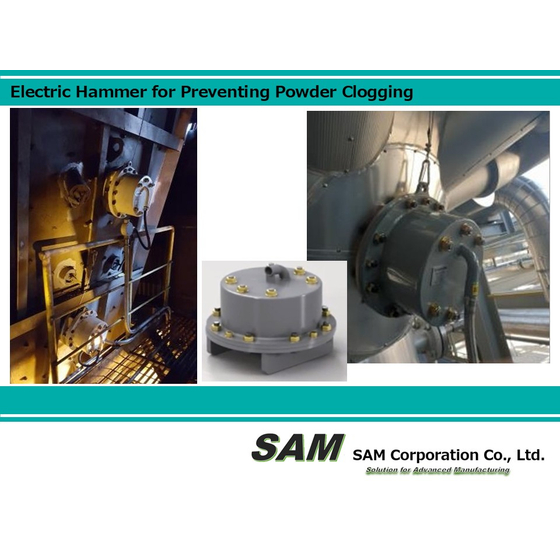

Electronic Hammer for Preventing Powder Clogging in Large Silos Effectively guides the flow of powder with vibrations (60 times per second) for various powder forms. Utilizes patented vibration technology to transmit vibrations over a wide area while preventing damage to the silo. ■ Cleaning Method that Transmits Vibration Over a Stable Wide Range - Electromagnetic Method: No utilities other than electricity (compressed air) required, propagates vibrations over a wide area. ■ Strong Durability - Completely Sealed Structure: Dustproof, waterproof, and explosion-proof effects. - High Durability: Designed for high durability, maintaining stable performance even in harsh operating environments. - Equipped with protective circuit for the control panel. ■ Improved Operational Efficiency - Smooth supply of raw materials allows for increased operational rates, enabling management of large areas with fewer personnel. - Various Operation Methods: Both on-site control and remote control are possible. - Flexible Control: Adjust impact force, impact duration, and pause time with volume control. - Actual operating current is below 2A, providing excellent energy-saving effects. ■ Flexible System - Easy installation, can be linked with factory automation systems. Compatible with various capacity selections and power sources.
Inquire About This Product
basic information
◇Main Material: Steel ◆Control Panel - Size: W500 x H600 x D300 (SUS304 / Only Case) - Main Power: 1ph 1W 220V (50/60Hz), 110V, 380V, 440V applicable. - Control Frequency: 20~60Hz - Built-in Driver (Number of Hammers that can be connected per Driver: 2 sets) ◇Electronic Hammer - Operating Method: SPWM - Vibration Acceleration: 100 m/sec² or more - Size: D350 x H251 (excluding handle, Steel) - Weight (including Fixing Pad): 43.4kg - For detailed information, refer to the catalog ◆Applicable Equipment: Powder Equipment ◇Various Certifications Obtained in South Korea and Abroad - South Korean Certifications: Pressure-resistant explosion-proof, explosion-proof, dust explosion-proof - Overseas Explosion-proof Certification: IECEx, European Explosion-proof Certification: ATEX (CE) - ISO9001:2015 Certification
Price range
Delivery Time
※Sam Corporation is the sole authorized dealer in Japan. *Process after downloading materials* Please note that individual inquiries (such as requests for quotes or specification confirmations) are not automatically processed. We apologize for the inconvenience, but please contact us directly. (We welcome phone inquiries: 045-313-5181)
Applications/Examples of results
South Korea's largest steel manufacturer, a subsidiary of a South Korean automobile manufacturer, and the largest comprehensive chemical manufacturer in South Korea, among others, have over 5,000 usage records (based on hammer standards) across more than 100 companies that require various powder management in steel mills, power plants, secondary batteries, petrochemicals, etc. <A new step in the world of vibrators. Electronic Hammer! 1) Solves problems occurring in raw material transfer equipment such as hoppers, silos, chutes, and piping. - Issues like bridging, arching, funneling, and rat holing. 2) Instantly generates impact and vibration simultaneously, transmitting powerful force to the equipment. 3) Enables powerful and effective vibrations transmitted as far as possible by utilizing resonance with the equipment. - Wide effective range: radius of 2-4m. 4) Drive method that minimizes fatigue failure of the equipment. - No history of equipment damage since product development in 2014!! 5) Allows for fine adjustments as desired by the user, including strength modulation, operation, and intervals. 6) Remote operation is possible with a remote method.
Detailed information
-
Even slight physical impacts generate widespread vibrations, preventing clogging in pipes, silos, and hoppers. We have a proven track record of supplying to companies requiring powder management, including steel mills, power plants, secondary battery manufacturers, steelmakers, chemical manufacturers, and petrochemical companies.
