Silicon wafer bonding via polysilazane

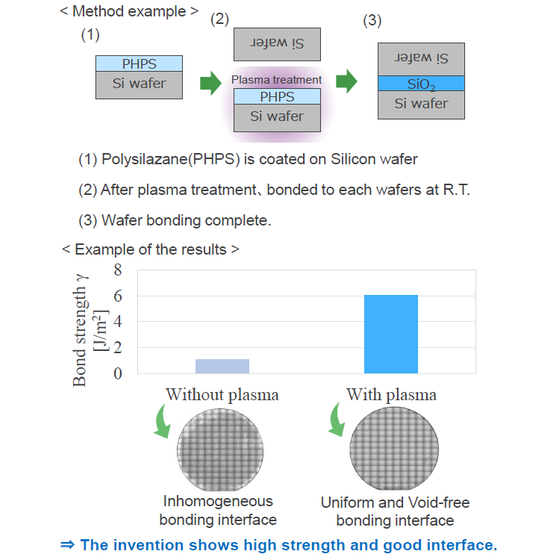

Recently, silicon wafers are required to be bonded to each other in the fields of semiconductors and MEMS devices. However, since the conventional wafer bonding technology requires bonding at a high temperature, thermal stress and warpage in the wafer makes the circuit failure. This is the simple wafer bonding technology which can be bonded to each other simply by overlapping and pressurizing the other silicon wafer via plasma treated polysilazane coating. This technology doesn't require the high-temperature bonding process, which is expected to increase the yield of semiconductor and MEMS devices.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
