An infrared light-emitting diode is used on the emitting side, and a modulated phototransistor is used on the receiving side.

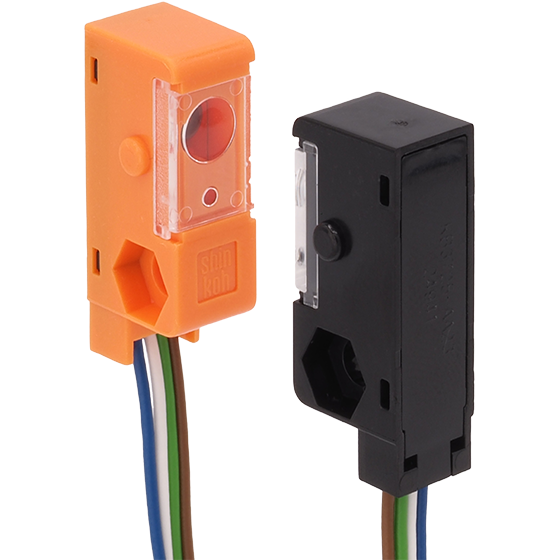

KB3725 is a separated type photo sensor that employs an infrared light-emitting diode on the emitting side and a modulated photo IC on the receiving side. It features an open collector output and can be installed over long distances (max. 2 m) between the emitter and receiver. Due to its optical modulation method, it is resistant to noise from ambient light (with a permissible ambient light level of 50,000 lx). It is suitable for applications such as work detection and positioning in automated lines, human passage detection at security gates and ticket barriers in stations, and prize drop detection in prize games.
Inquire About This Product
basic information
【Features】 ○ Uses infrared light-emitting diodes on the emitting side and modulated phototransistors on the receiving side ○ Light modulation asynchronous type ○ Can be installed over long distances (max. 2 m) between the emitter and receiver ○ Open collector output ○ Strong against noise such as stray light due to the light modulation method (stray light tolerance illuminance 50,000 lx) 【Main Specifications】 ○ Package type: Screw-mounted harness type ○ Detection distance (mm): 2000 ○ Stray light tolerance illuminance (lux): 50,000 ● For more details, please contact us or refer to the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Applications】 ○ Detection and positioning of workpieces on automated lines ○ Human passage detection at security gates and ticket barriers at train stations ○ Detection of prize drop in prize games ● For more details, please contact us or refer to the catalog.
