It is a two-wavelength light-emitting diode that incorporates red and infrared light-emitting diode chips into a metal package.

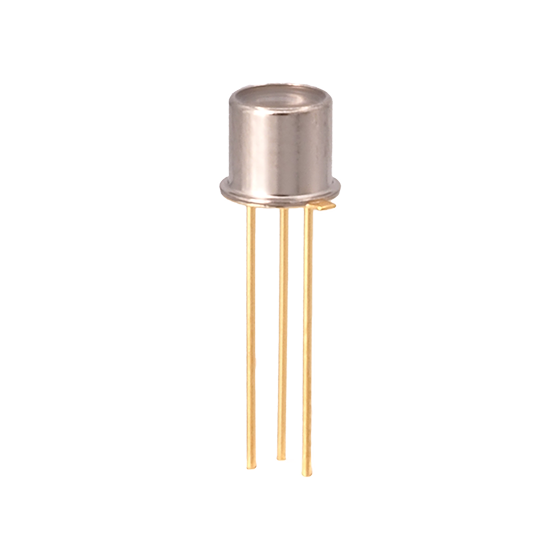

KL3012 is a two-wavelength light-emitting diode that incorporates red and infrared light-emitting diode chips into a metal package. - Two-wavelength LED: red (λp: 660nm) and infrared (λp: 880nm) - High performance and high reliability in a TO-18 metal package - Narrow viewing angle (θ: ±40°) and high output It is suitable for applications such as light sources for printed pattern identification, color sensors, and paper quality detection sensors. For more details, please contact us or refer to the catalog.
Inquire About This Product
basic information
【Features】 ○ Incorporation of red and infrared LED chips into a metal package ○ Two wavelengths: red (λp: 660nm) and infrared (λp: 880nm) ○ High performance and high reliability in a TO-18 metal package ○ Narrow viewing angle (θ: ±40°) with high output 【Main Specifications】 ○ Emission output: 0.14/1.6mW(min.) ○ Emission color: red, infrared ○ Peak emission wavelength: 660/880nm ○ Half-angle of the viewing cone: ±40° ○ Package: TO-18 ○ Flat lens type ● For more details, please contact us or refer to the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Usage】 ○ Light source for printing pattern identification ○ Light source for color sensors ○ Light source for banknote identification sensors ● For more details, please contact us or refer to the catalog.
