This is a sheet-type contactor that achieves advanced measurements at low cost. It allows for stable connections without damaging the measurement object or the measurement board.

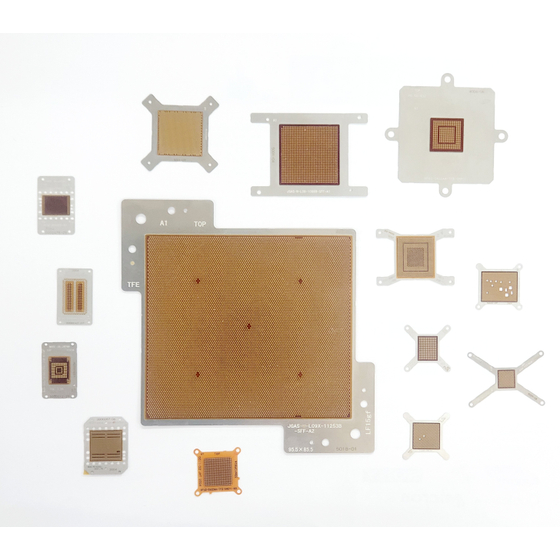

PCR is a pressure-sensitive conductive contact sheet that aligns conductive particles in the thickness direction of the sheet using a special method. By applying pressure to the electrode area where the conductive particles are arranged, the particles come into contact with each other, forming multiple conduction paths that maintain stable electrical characteristics. Since the main material is silicone rubber, it can be operated without damaging the IC package and measurement board during contact. Additionally, because PCR uses surface contact, it allows for a large tolerance for positional misalignment. Leveraging the advantages of short-distance connections, it is ideal for measuring high-end products with high-frequency requirements. When pressure is applied to PCR, countless conductive paths are formed instantaneously, achieving exceptional stability and unparalleled electrical reliability. Due to the very short connection distance, PCR enables the speed and precision required for high-frequency and high-performance testing. PCR test sockets can be custom-designed, allowing us to propose shapes and structures tailored to customer requirements. They excel in balancing cost efficiency and reliability, making them ideal for testing various types of semiconductor packages.
Inquire About This Product
basic information
- Compatible Pitch: 1.27 to 0.25 mm * The compatible electrode length and magnetic pole diameter vary for each pitch. - Compatible grid number: 100x100 (approx.) * The compatible grid number varies depending on the pitch. - Compatible size: 100x100 mm (electrode area/approx.) * The compatible size varies depending on the pitch. - Operating temperature range: Standard type/-40 to 125°C, Wide range type/-55 to 150°C
Price range
Delivery Time
※Prices will be set based on product specifications and order quantities. Please feel free to contact us.
Applications/Examples of results
Applicable Uses - Final selection test (handler) - System level test / SLT - High-frequency verification evaluation - Design verification evaluation - Reliability evaluation - Debug verification - Inter-board connection (short-distance connection connector, solder implementation replacement) / BtoB - Burn-in test
