New model compliant with American efficiency regulations (DOE) LEVEL 6! Wide input support (AC 100-240V)

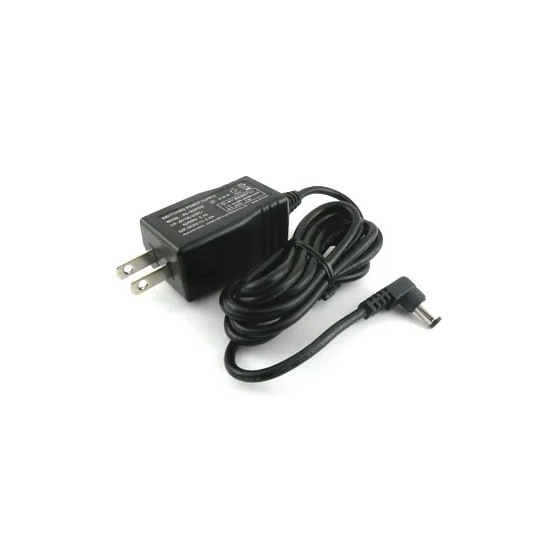

We would like to introduce the AC adapter 'AD-Q50P200' handled by Acon Co., Ltd. This new model complies with the U.S. efficiency regulation (DOE) LEVEL 6 and uses Japanese-made electrolytic capacitors that are adopted in mass-produced products by major electronics manufacturers. Additionally, despite its compact size, it incorporates an insulated transformer and is equipped with overcurrent and overvoltage protection features. 【Features】 ■ 10W, ultra-compact L-shaped AC adapter ■ PSE certification obtained ■ New model compliant with U.S. efficiency regulation (DOE) LEVEL 6 ■ Secondary molding of the DC plug part ■ Compliant with tracking resistance tests and glow wire flammability tests ■ Uses Japanese-made electrolytic capacitors (Rubycon 105°C, long lifespan) *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 ■ Wide input compatibility (AC100–240V) ■ Cable length: 1.5m ■ DC plug: outer diameter: 5.5mmΦ, inner diameter: 2.5mmΦ, length 9.5mm ■ Dimensions (mm): 58 (width) x 32 (height) x 25 (depth) ■ DC output polarity: center positive ■ Overcurrent and overvoltage protection included ■ RoHS compliant ■ EMC standard: FCC Part 15 Class B compliant *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
Company information
Acon Co., Ltd. is engaged in the development and customization of switching power supplies, LED power supplies, high-voltage power supplies, and special power supplies. We have various development examples, including LED power supplies, multi-output power supplies, Wi-Fi controllers, control boards + power supplies, and DC-DC constant current power supplies. Please feel free to contact us if you have any inquiries.
