Camera screw compatible digital simple wireless 3-element Yagi antenna
NY351X3CA/NY351X3CA(2S)/NY467X3CA/NY467X3CA(2S)
A 351MHz/467MHz band digital simple wireless 3-element Yagi antenna that can be directly mounted to camera tripods (1/4-20UNC) and the like.
NY351X3CA: 351MHz band MJ (with 45cm coaxial cable) NY351X3CA(2S): 351MHz band SMAP (with 2m coaxial cable) NY467X3CA: 467MHz band MJ (with 45cm coaxial cable) NY467X3CA(2S): 467MHz band SMAP (with 2m coaxial cable) This is a 3-element Yagi antenna that can be used with digital simple radios in the 351MHz/467MHz band and can be directly mounted on camera tripods (1/4-20UNC) and other equipment. It features removable and easy-to-assemble stainless steel pipe elements. A knurled bolt is included for the attachment of the feeding section. Custom options are available for small quantities. Please contact us. * Tripod mounting brackets are not needed / U-bolts are desired / cable length changes, etc.
Inquire About This Product
basic information
- Antenna Type: 3-element Yagi antenna - Frequency NY351X3CA/NY351X3CA(2S): 351MHz band (Digital Simple Radio) NY467X3CA/NY467X3CA(2S): 467MHz band (Digital Simple Radio) - Gain: 8.15dBi - Application: For mobile stations/fixed stations - Input Impedance: 50Ω - Maximum Input Power: 10W - Voltage Standing Wave Ratio: 2.0 or less - Connectors NY351X3CA: MJ (with 45cm coaxial cable) NY351X3CA(2S): SMAP (with 2m coaxial cable) NY467X3CA: MJ (with 45cm coaxial cable) NY467X3CA(2S): SMAP (with 2m coaxial cable) - Total Length NY351X3CA/NY351X3CA(2S): Approximately 585mm NY467X3CA/NY467X3CA(2S): Approximately 415mm - Weight NY351X3CA: Approximately 340g NY351X3CA(2S): Approximately 350g NY467X3CA: Approximately 330g NY467X3CA(2S): Approximately 340g
Price range
P2
Delivery Time
Applications/Examples of results
Various wireless communications such as wireless LAN, RFID, and business radio Companies from various industries and sectors, including major telecommunications companies, research and development organizations, and government agencies.
Detailed information
-

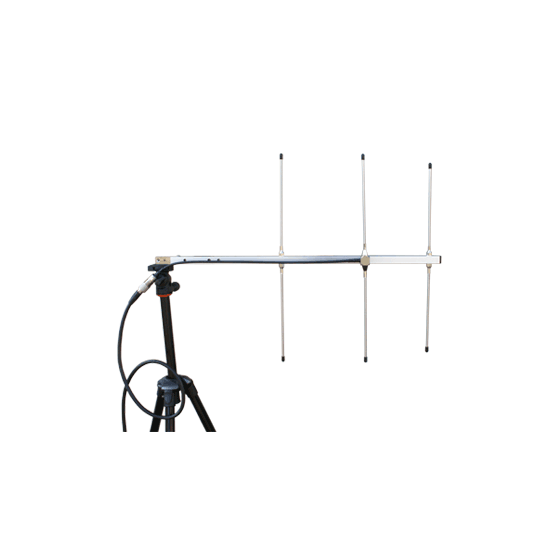

Reference image usage (NY351X3CA(2S))
