Ultrasonic Array probe for ultrasonic flaw detection. Phased Array, SAFT, TFM, FMC,etc
AR Series
Customized production based on customer requests. Ultrasonic Array probe.

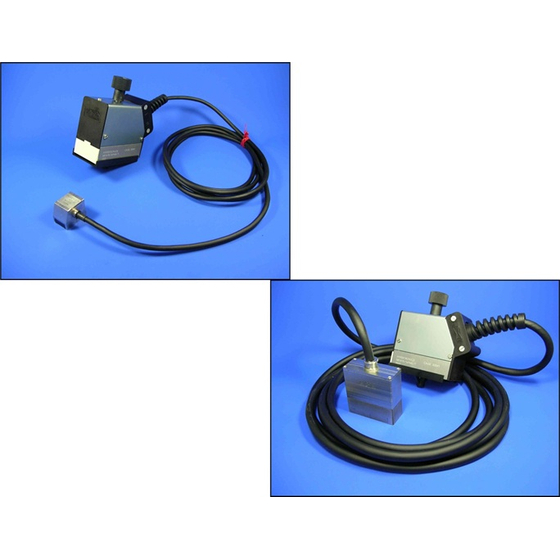

● Array probes are probes used for phased array and synthetic aperture focusing technique (TFM, FMC, SAFT, etc.) in ultrasonic flaw detection. ● Types include linear arrays, where transducers that transmit and receive ultrasound are arranged in a line; annular arrays, where transducers are arranged in concentric circles; and matrix arrays, where transducers are arranged in a grid pattern. ● Array probes can be manufactured not only in flat shapes but also in two-dimensional curved types, such as concave types that match the curvature of the test object, and even in three-dimensional curvature that sets the ultrasonic focus. There is also a wealth of experience with special specifications such as flexible,Insert inside and tire-shaped probes. Array probes are made up of multiple elements, with standard specifications ranging from 8 to 256 channels, but other numbers of elements can also be discussed. ● Standard support for 8 to 256 elements (other numbers of elements can also be discussed) ● There are many proven applications for straight beam inspection, angle beam inspection, immersion inspection, and using gel wedges, among others. ● Please consult us regarding frequency, transducer dimensions, channel count, connector shapes, etc.
Inquire About This Product
basic information
Standard Specifications ● Nominal Frequency: 0.5 to 15 MHz ● Number of Elements: 8 to 256 channels ● Element Pitch: 0.2 or more We also accept inquiries for specifications other than those listed above. Please contact us.
Price range
Delivery Time
※It varies depending on the specifications. Please consult us.
Applications/Examples of results
● Phased array, TFM/FMC (synthetic aperture focusing technique) and other ultrasonic testing. ● Detection of internal discontinuities in materials such as delamination of CFRP, bonding ,brazing and welding, and voids in castings (using phased array ultrasonic testing equipment). ● Internal probes for insertion into pipes and similar structures. ● Tire-shaped array probes.
catalog（1）
Download All Catalogs
Company information
KGK a specialized manufacturer of ultrasonic probes, supports your safety management through the production of ultrasonic probes. As a manufacturing group, KGK is committed to meeting your needs and also accepts orders for custom-designed probes in addition to standard probes. For the consider and selection of probes, we also conduct confirmation tests of the detectability using test pieces and other samples. If you have any issues regarding ultrasonic probes, please feel free to consult with KGK.
