A multifunctional power unit that can be converted into a generator compatible with single-phase three-wire and three-phase four-wire systems, with the capability to expand up to a maximum of 30 kW.

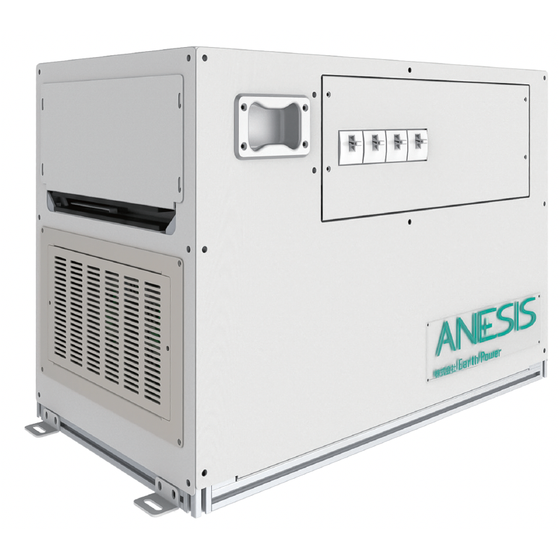

- About ANESIS This is a Power Unit that can accommodate capacities from 4kW to a maximum of 30kW. It is equipped with output control functions for single-phase three-wire and three-phase four-wire systems, making it suitable for various applications. It can switch without interruption (in less than 10ms) and can also be used as a backup power source with UPS specifications. - Alternative to Generators Efforts to consider and reduce environmental impact, such as those related to the SDGs, are becoming increasingly significant. Generators are revolutionary products that can generate power simply by adding fuel, but they also significantly promote CO2 emissions. However, with ANESIS, it is possible to extract power similar to that of a generator without CO2 emissions, simply by charging a battery (sold separately). Additionally, it is maintenance-free and produces no noise, providing an environmentally considerate power solution. - About the Battery Pack We also offer lithium-ion batteries for ANESIS. By using the lithium iron phosphate battery "Hive Series," you can customize it for various capacities, all covered by a full warranty. For more details, please check the product page.
Inquire About This Product
basic information
1. About Specifications - Selectable from 9 types of output functions and 2 types of input voltages with high specifications - Storage capacity: DC24V or DC48V (selectable from 4 types) - Capacity output: 4kW to 30kW, capable of handling various loads due to large capacity 2. About Functions - Charging possible at AC100V or AC200V - Built-in UPS (Uninterruptible Power Supply) function allows for seamless switching between public power and energy power (under 10ms) - Prioritization of public power or energy power selection according to application - High safety ensured by comprehensive internal circuit protection features - Improved installation flexibility due to separate circuit configuration from the battery 3. About Warranty - Product warranty: 2 years Maximum extension possible up to 3 years by joining our unique extended warranty system (up to 5 years warranty) 4. Notes - Battery not included (battery sold separately) - Recommended battery: Our verified Hive series (covered by warranty)
