It will be useful for the preventive maintenance of small and medium-sized turbo machines and large electric drive machines. Let's utilize field balancing for long-lasting performance.
We have set up CABS, which is utilized for field balancing to address shaft vibration and dynamic balancing issues in large turbo machinery (such as steam turbine generators, gas turbine generators, blowers/air compressors), for small and medium-sized machines and motor-driven equipment. The challenges posed by bearings cannot be completely avoided, as there will always be slight imbalances in the rotating body or misalignments during assembly (such as centering or distortion), regardless of how well the bearings are made. Moreover, if field balancing is not performed properly after assembly on long shafts or flexible foundations, it can lead to problems caused by vibrations later on. CABS is actively used for field balancing and continuous monitoring of conditions in large turbo machinery. From this, we have condensed the core functions specifically for field balancing tasks into CABS-M. Electric drive machines are becoming larger daily, and while elastic forces increase, the structure of the foundation is shifting from rigid to flexible, complicating the vibration mechanisms. This helps in understanding and analyzing the vibration state. Please feel free to contact us at https://power.mhi.com/jp/group/eng/business/products/cabs.
Inquire About This Product
basic information

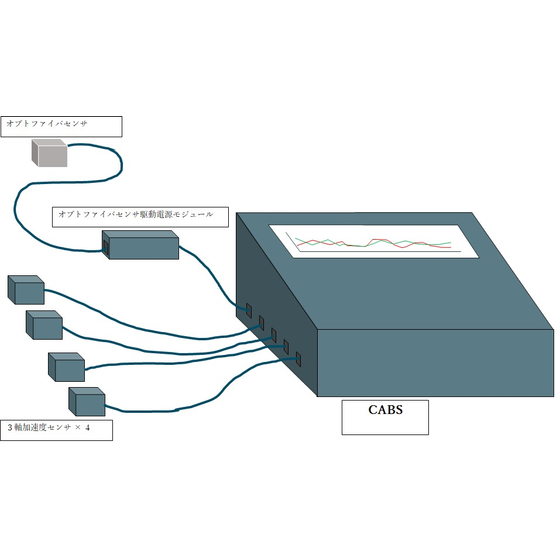

The photo above is a prototype machine CABS-M (full specification) CABS. Number of measurable rotation axes (number of phase reference input points): 1 2 Number of vibration measurement points: 12 (4 points with 3-axis sensors) 16 Number of DC value measurement points: 0 4 (up to 10 points as an option) Compatible vibration sensors: Dedicated acceleration sensors Displacement, velocity, acceleration Measurement cycle (at constant speed): 1 time/1 second at 3000rpm 1 time/1 second at 1000rpm and above Measurement cycle (during acceleration): 0.5 times/1 second at 1000rpm 1 time/1 second at 1000rpm 1 time/1 second at 3000rpm 3 times/1 second at 3000rpm Gap voltage/turning fluctuation measurement: None Available Customization support is welcome. Please feel free to consult us about continuous monitoring of conditions. Motor current waveforms can also be sampled simultaneously. Please contact us from the related link above.
Price information
The minimum configuration provided includes the CABS-M main unit and an accelerometer. Options available include: - A sensor for one-pulse counting - Hardware and software for capturing the current waveform signal of the drive motor - Windows PC version of dynamic balance support software *The price range mentioned below, 5 million yen, is quite high (as that is how Ipros works). It is not priced at that level. Please contact us through the related link above.
Price range
P5
Delivery Time
※It is made to order. Please contact us through our website above.
Applications/Examples of results
CABS has exceeded a total shipment of 500 units to date. We have sufficient track record. - Steam turbines - Gas turbines - Axial flow compressors - Pumps - Fans and other turbo machinery, as well as - Generators - Marine propeller shafts are being utilized. For previous models, it is beneficial to use the same measuring instruments to collect comparable data when checking balance during quality control before factory shipment and when checking centering and field balance after setup on-site. This method is meaningful for balance adjustment, data management, and asset management, allowing for long-term use. Rotating machinery aimed at high performance and cost reduction tends to have increasing elasticity. The confirmation of dynamic balance is becoming increasingly important as part of product quality management and for inspecting the condition of equipment that will be used for a long time. We can also add current waveform/harmonic monitoring functions for electric motors. Additionally, data integration is possible. For detailed usage and inquiries, please contact us through our company website above.
Company information
Our company is a member of the Mitsubishi Heavy Industries Group, serving as a design technology partner for Mitsubishi Heavy Industries, where we engage in planning and mechanical design for prime movers (steam turbines/boilers, gas turbines, water turbines), pumps, and various plants, as well as instrumentation control system planning and electrical design. In order to meet the increasingly diverse and sophisticated needs of our customers, we will continue to challenge ourselves to improve our technological capabilities, streamline operations, and reduce costs based on the trust we have built with users. Through this, we are developing activities that contribute to society by providing the products and engineering capabilities we have cultivated so far to everyone. Alongside the sale of products related to IoT, manufacturing DX, and on-site monitoring/condition monitoring, we will focus on custom orders, customization, and system construction to realize your ideas. We encourage you to consider utilizing our services. https://eng.power.mhi.com
