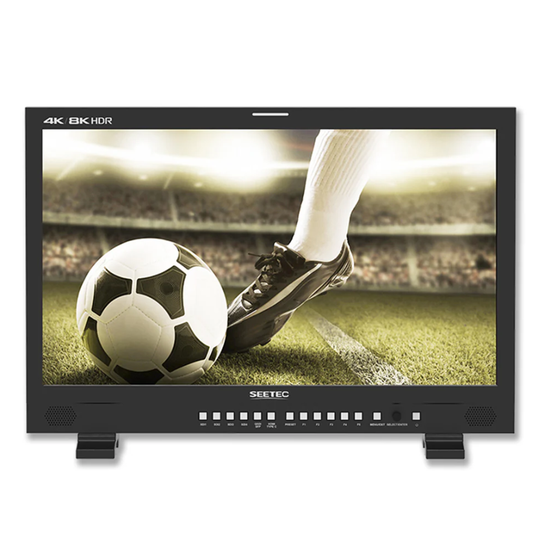

SEETEC, 23.8-inch wide IPS LCD panel, brightness 540cd/m2, 4K HDMI & 12G-SDI input/output, for video cameras.
【SEETEC 12G238F Features】 ■ 23.8-inch wide (16:9) IPS LCD panel ■ 3840x2160 high-resolution LCD ■ High resolution 4096x2160 (4K DCI) display (HDMI) ■ High resolution 3840x2160 (4K UHD) display (SDI) ■ Wide viewing angle 89°/89° (L/R), 89°/89° (U/D) ■ Abundant input and output options 12G-SDI input x4, 12G-SDI output x4 HDMI input x2 RS422 input x1, RS422 output x1, GPI x1, LAN x1 ■ Rich auxiliary features Screen rotation Shooting assistance features (False Color, Check Field, Zoom-in) Dynamic UMD (TSL 3.1/4.0/5.0 protocol)
Inquire About This Product
basic information
Specifications - Panel: 23.8-inch wide IPS LCD with LED backlight - Physical resolution: 1920x1080 - Display resolution: 480i to 4096x2160p (4K) - LCD brightness: 540cd/m² - Contrast: 1200:1 - Viewing angle: 89°/89° (left/right) 89°/89° (up/down) - Input signals: 4 x 12G-SDI (8K compatible), 2 x HDMI (4K compatible) - Output signals: 4 x 12G-SDI (4K compatible) - I/O: 2 x RS422 (1 IN, 1 OUT) (RJ45), GPI (RJ45), LAN (RJ45) - SDI input, SDI output: BNC - Power supply / Power consumption: AC 100V to 240V / 90W - Dimensions / Weight: 571.7(W) x 414.85(H) x 160(D) mm / 8.2 kg - Operating temperature: -10 to 50°C Package contents - Main unit - AC cord - Stand - Manual - Mini HDMI cable - HDMI cable - SDI cable
Price information
Open price
Delivery Time
Applications/Examples of results
4K UHD/Full HD camera, monitor use for film shooting, etc.
