You can extend the KVM signal via LAN cable up to a maximum of 100 meters!

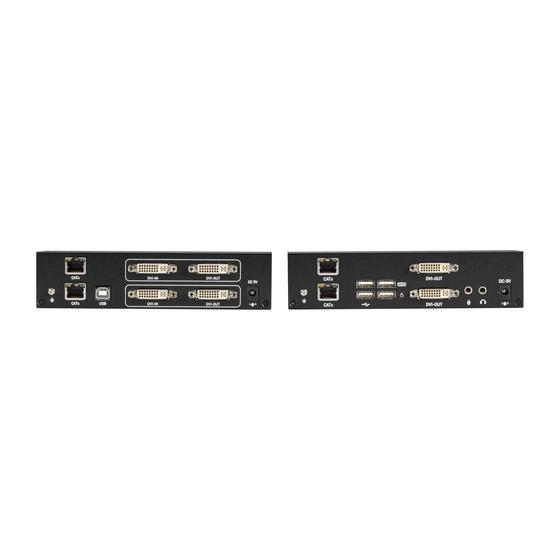

【Model Number: KVXLC-200-R2】 Dual Screen Support The KVX series features easy connectivity, allowing KVM signals to be extended up to 100m via LAN cable. No complicated settings are required; simply connect the devices to achieve remote operation of computers and machines. (Two LAN cables are required) 【Features】 ■ Set sale of transmitter and receiver ■ Maximum DVI-D video resolution of 1920×1200 @ 60Hz ■ Extension up to 100m possible ■ Transparent USB 2.0 extension function supports HID devices and large-capacity storage ■ Bidirectional audio via speaker/microphone connection ■ Local output port available for video display on server/PC side ■ Supports RS232 peripheral devices (serial) such as scanners and terminals (fixed speed: 115,200 bps) ■ Rack mount kit available for 1U (19" standard) (optional) ■ Supports EDID pass-through ■ Video cables included (2 pieces) ■ Warranty: 2 years free send-back service *Please consult us if conversion of video connectors is necessary.
Inquire About This Product
basic information
【Selectable Lineup】 Video Connectors: DVI-D / DisplayPort / HDMI Extension Methods: CATx Cable / Fiber Optic Number of Screens: Single Monitor / Dual Monitor *For more details, please refer to the lineup below or the product documentation. 【SFP Modules】 LFP411 Multi-mode/LC 2-core ~550m LFP412 Multi-mode/LC 2-core ~2km LFP413 Single-mode/LC 2-core ~10km LFP414 Single-mode/LC 2-core ~30km 【Other Accessories】 19” Rack Mount Tray (for Single Head): KVXLC-RMK 19” Rack Mount Tray (for Dual Head): KVXLC-RMKDUAL DIN Rail Mount Kit: KVXLC-DRM Desk Mount Kit: KVXLC-DMK
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（2）
Download All Catalogs
Company information
Black Box, as a leading technology solutions provider in the industry, operates in 175 countries worldwide, including its headquarters in the United States, as well as North America, South America, Europe, and the Asia-Pacific region. ■ KVM switches, KVM extenders ■ AV and multimedia equipment, digital signage ■ Industrial Ethernet, media converters, extenders ■ Office network products ■ LockPORT security LAN cables ■ Network product installation services Black Box realizes the most cost-effective and optimal systems. We assist from the assessment and planning of the desired system to design, equipment procurement, implementation of monitoring, management, and support. We propose optimal safety management, video management, environmental monitoring, remote control, and power management measures.
