Even thin copy paper is supported! The mesh roller allows for gluing only the spine and the edges with a dot pattern.

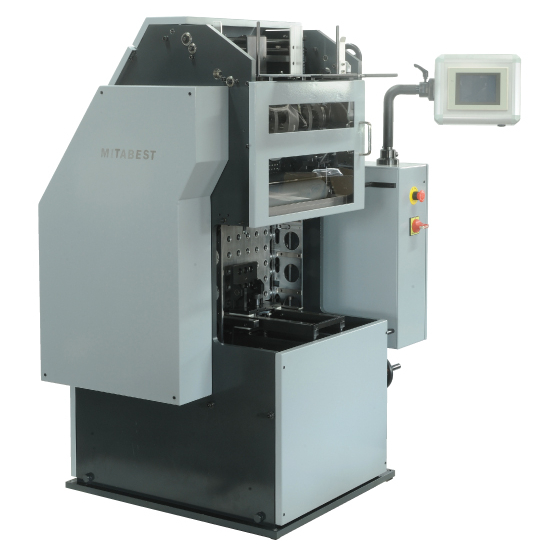

"Mitabest" is a specialized machine that can create folded and glued bindings for architectural and civil engineering drawings. The paper flow is the same as that of lay-flat binding, but the adhesive application is only along the spine and the small edge, with a consistent width on both edges rather than across the entire surface. Additionally, the paper being bonded is thin and made of weak copy paper. The machine can bind two sizes of paper: A3 for open size and A4 or A3 for folded size. 【Features】 ■ Specialized machine for binding architectural and civil engineering drawings ■ Adhesive application only on the spine and small edge using a mesh roller with a dot pattern ■ High-speed bonding of up to 100 sheets per minute ■ Compatible with thin copy paper *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Product Specifications】 ■Machine Speed: 100rpm ■Paper Size ・Min: 200×150mm (8×6 inch) ・Max: 420×330mm (16.5×13 inch) ・A4, A3 (paper size folded from design drawings) ■Power Supply: AC200V 3-phase 50Hz, 60Hz ■Power: 2.265KW ■Machine Size: 900×1,200×H=1,500mm ■Machine Weight: Approximately 900kg *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Folding and accordion binding of architectural and civil engineering drawings *For more details, please download the PDF or feel free to contact us.*
catalog（2）
Download All Catalogs
Company information
Mitani Co., Ltd. designs, manufactures, and sells bookbinding machines, sample pasting machines, and various labor-saving machines. We also handle fully automatic collating and binding machines (dedicated machines for school albums): Patent No. 1940166, linked press machines (integrated with fully automatic collating and binding machines), simple presses (Max: 1 ton), non-stop high-speed single-sided sample pasting machines, and automatic multi-point sample pasting machines.
