Built-in dual Ethernet PHY! Supports 100Mbps (100BASE-TX) operation.

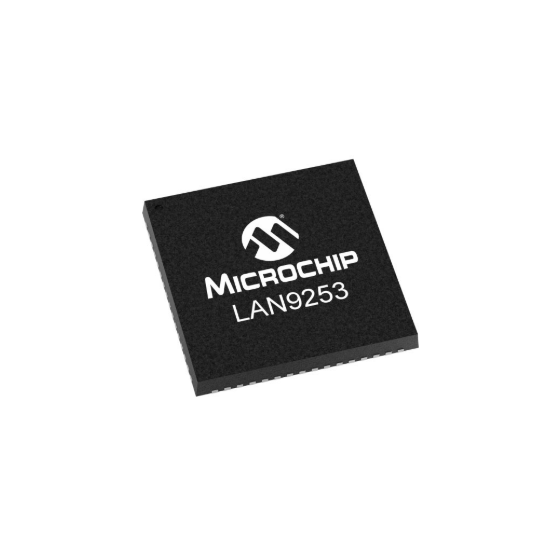

The LAN9253 is a 3-port EtherCAT device controller (ESC). It has a built-in dual Ethernet PHY, each equipped with a full-duplex 100BASE-TX transceiver, supporting 100Mbps (100BASE-TX) operation. Additionally, it supports HP Auto-MDIX, allowing the use of either direct connection or crossover LAN cables. 【Features】 ■ 2/3-port EtherCAT slave controller with 8 fieldbus memory management units (FMMUs) and 8 SyncManagers ■ Dual integrated Ethernet PHY with HP Auto-MDIX ■ Wake on LAN (WoL) support ■ Optimization of EtherCAT cycle time ■ 3.3V single power supply (1.2V LDO built-in) ■ Package: 64-pin QFN (9×9mm) *For more details, please download the PDF (English version) or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Motor motion control ■ Building automation ■ Hydraulic and pneumatic valve systems ■ Robotics control systems *For more details, please download the PDF (English version) or feel free to contact us.
