Semi-automatic processing of paint sludge.
**Sludge Recovery System "BOSS 2000"** The sludge recovery system "BOSS 2000" pumps up paint mist repaired in the oil booth, separates it using a 1600G centrifugal separator, and condenses, solidifies, or semi-solidifies the collected sludge, making it possible to reduce the cost of waste disposal for paint sludge to about one-fifth of the conventional amount. **Compression and Separation of Sludge by 1600G Centrifugation** The pump draws up the repaired paint mist from the oil booth, which is then separated by the 1600G centrifugal separator. The paint sludge is compressed for easy removal. Additionally, the oil from which the paint sludge has been removed is returned to the oil booth. **Significant Reduction in Waste Disposal Costs** The paint sludge is compressed into smaller sizes, significantly reducing the amount of waste for disposal and greatly lowering costs. **Note:** It is necessary to confirm the applicable paint. Please check with your sales representative. **Contact:** Takubo Engineering Co., Ltd. Sales Engineering Department TEL: 0475-50-0211 or please visit the Takubo Web Contact Page at https://www.takubo.co.jp/.
![スラッジ回収システム-[更新済み]650.png](https://image.mono.ipros.com/public/product/image/23630/IPROS13706494453660583152.png?w=280&h=280)
Inquire About This Product
Related Videos
basic information
【For Oil Booths】 ● Oil and sludge are separated by a unique centrifugal separation method. ● Clean oil is returned to the booth for reuse. ● The remaining sludge can be condensed and solidified (waste plastic), reducing waste disposal costs to about one-fifth of the conventional amount. ● Furthermore, the solidified sludge can be reused as a heat source. 【For Water Wash Booths】 ● Paint sludge sent to the sludge recovery device is further separated into sludge and water using a decanting method. ● The sludge is solidified and extracted, significantly reducing waste disposal costs and labor costs. ◆◇◆ For more details, please request materials or contact us ◆◇◆
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
Paint sludge treatment device for oil booths Optimal paint: resin paint Suitable for hand spray oil booths and robot-connected oil booths *For more details, please contact us.
Detailed information
-
Paint sludge recovery device Boss 2000 Dedicated to oil booths, centrifugal separation type, semi-automatic paint sludge processing device.
-

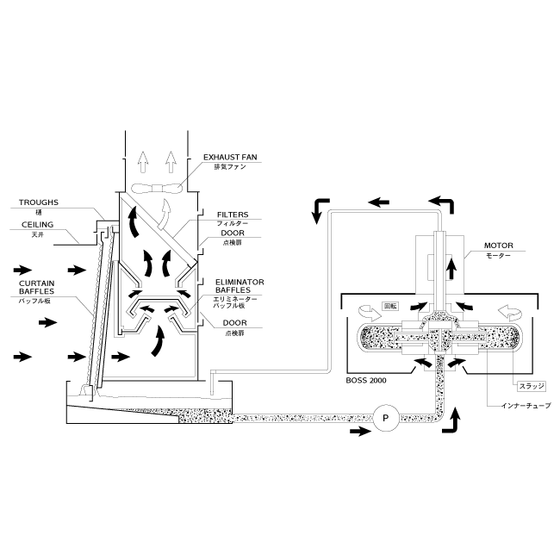

Oil booth connection example Dedicated oil booth paint sludge recovery device.
-
1600G centrifugal separator Separates oil and paint sludge using a centrifugal method. The paint sludge can be reduced in size and extracted in a solid form.
-
Boss 2000 external dimensions
Line up（1）
| Model number | overview |
|---|---|
| Boss 2000 Type 10 | Oil booth dedicated paint sludge recovery device |
