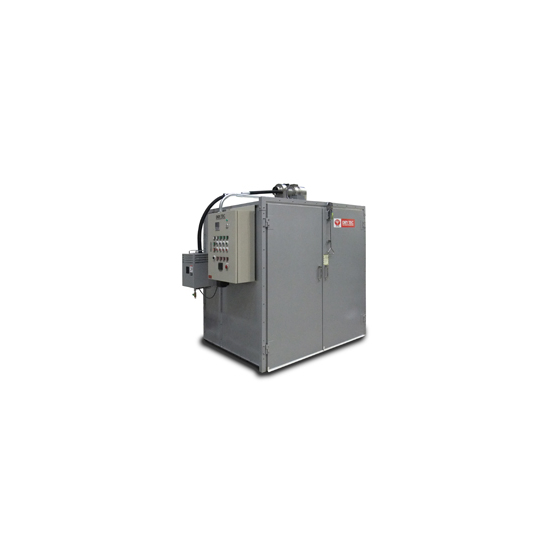

Product Price Details Site - Painting Drying Machine "DryTech"
Product Price Details Site Dry Tech
Heat recovery type, low running cost, hot air dryer for painting.
In the price navigation, you can check the prices of Takubo products. We offer a rich lineup to provide the most suitable products for your needs. 【Single Door GO Series】 This model is designed for one-way access for loading and unloading workpieces, making it suitable for batch production. 【Front and Back Door GOW Series】 This model allows for loading from the painting room side and unloading from the preparation room side, making it suitable for production processes when installed in a clean room. 【Divided by Energy Used】 The primary energy source is gas, but it can also accommodate electric heating (with slight changes in specifications). It is capable of drying various paints, including resin, water-based, and melamine baked coatings. It can also be used for water drainage annealing. 【Specifications and Options】 Designable as a firing furnace. Options include shelves, internal partitions, inspection windows, explosion relief vents, and patrol lights.
Inquire About This Product
basic information
【Standard Product Lineup】 This is an indirect heating hot air dryer that adopts a high-performance heat exchange system, excelling in safety, quality, cost-effectiveness, workability, and expandability. 【Specifications and Overview Drawing】 Overview size display 【Fuel Consumption Calculation】 Simple running cost calculation 【Divided by Energy Used】 Selectable by type of energy source, such as gas or electricity 【Optional Items】 Design options available for rail passage specifications and hill-shaped furnaces 【Custom Products】 Electric furnaces and firing kilns, etc.
Price information
Takubo Engineering Product Price Details are currently available on the website.
Delivery Time
P4
Applications/Examples of results
Supplied extensively for all types of painting. Applicable to a wide range of industries and sectors.
Detailed information
-
Heat Exchanger Takubo Engineering Original Heat Exchanger
-
Mechanism of Heat Exchange
-
【Heat Exchange System】 Eliminate unnecessary energy consumption and reduce painting costs. The heat exchanger is essentially the heart of Dry Tech. It is a heat energy reutilizer that exchanges heat energy with an approximately 85% conversion efficiency when discharging the heat energy from combustion. It rethinks the conventional dryer that "continues to burn and continues to release," eliminating unnecessary energy consumption and enabling reutilization.
-
【Plate Heating Method】 Takubo Engineering's original heat exchanger uses a steel plate with many corrugated folds, where heated exhaust air is applied to transfer heat through the plates. It is a heat recycling system.
-
【Indirect Heating Method】 The heating method of the Drytech dryer, developed specifically for painting, is indirect heating. It heats safely without bringing any ignition sources into the furnace. Additionally, it does not bring combustion gases into the furnace. This prevents drying issues such as orange peel and gas checking.
-
【Safety】 Compared to direct flame dryers for painting, the indirect heating method is a very safe heating method. It does not introduce any ignition sources into the furnace where solvents may evaporate and accumulate.
-
Solvent Explosion Graph
-
[Custom Products] Designs available for electric furnaces, Yamagata furnaces, and firing kilns.
-
[Fuel Consumption Calculation] Simple running cost calculations can be performed. You can calculate the costs just by entering the contract price. (Maximum value) Calculation is only for when the burner is "on."
Line up（3）
| Model number | overview |
|---|---|
| GO type | Single leaf type |
| GOW type | Front and rear door type |
| Custom type | Large dryer outside standard size |
