Compatible with 17 to 32-inch monitors! It can also be installed on other devices, expanding its range of use.

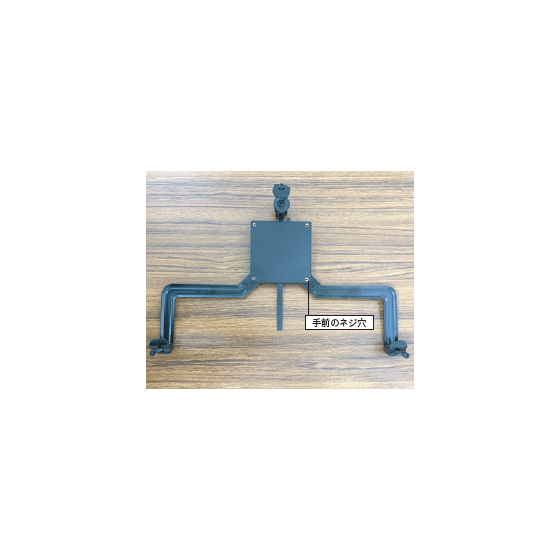

The "DAC-VSMAD" is an adapter designed to mount monitors without VESA holes onto monitor arms that are compatible with VESA 100 holes. Mounting the monitor and adjusting the size is easy, and the lower bracket allows for four types of adjustments through two levels of screw positions and swapping left and right. Additionally, the upper bracket features stepless adjustment via a push button, allowing for free positioning of the monitor holding components, and it supports monitors ranging from 17 to 32 inches. 【Features】 ■ Easy to mount and adjust the size for monitors ■ Compatible with monitors from 17 to 32 inches ■ Made of plastic and metal, with a load capacity of 9 kg ■ The monitor holding components are equipped with rubber to prevent scratches and shifting of the monitor ■ If the usage conditions are met, it can also be used to mount items other than monitors, expanding its versatility *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■ Compatible monitor sizes: 17 to 32 inches ■ Compatible monitor depth: 22 to 52mm ■ Compatible VESA standard: 100mm×100mm ■ Load capacity: 9kg ■ Dimensions ・When using lower bracket A pattern: W360 or 385×D95×H265 to 380mm ・When using lower bracket B pattern: W415 or 440×D95×H235 to 350mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company handles front and rear I/O, drive accessories, internal power cables, and cooling fans. Please feel free to contact us if you have any requests.
