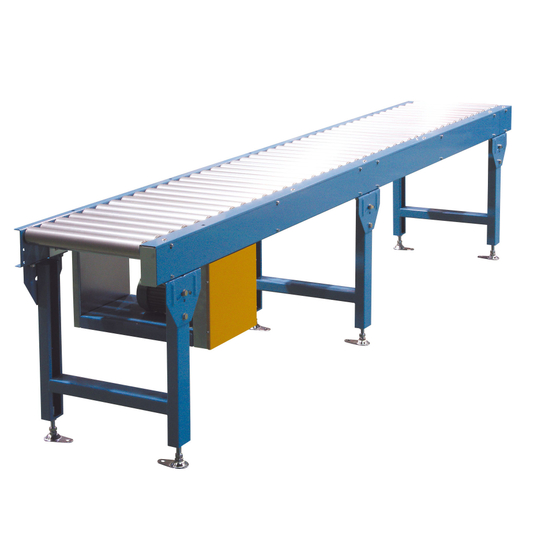

Chain-driven accumulator roller conveyor MCC2H
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Silent, clean, and efficient! The ideal chain-driven roller conveyor for accumulation transport.
This is a chain-driven accumulation roller conveyor using resin sprockets and resin chain rails. 【Main Specifications】 - Reference transport mass: 55 kg/m (distributed load) - Length: 120 to 1500 cm - Frame: [125×30×3.2 - Nominal width: 400 to 1000 mm
Inquire About This Product
basic information
【Features】 - Efficient transport with accumulation function - Uses resin sprockets and resin chain rails - Supports medium load transport 【Other Specifications】 - Roller diameter: φ57 mm - Motor output: 0.2 kW, 0.4 kW, 0.75 kW - Minimum height: 440 mm (drive unit) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Meeting all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can accommodate all logistics needs from transportation to palletizing. ■Advantages of line configuration The flagship model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations with each unit. Additionally, there is a lineup of free roller conveyors that transport without using power. They are easy to use, cost-effective, and help reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by a motor feature a round belt drive that allows for inexpensive and simple accumulation. There is also chain drive, which drives rollers with sprockets using a chain. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drive uses a motor or motor roller to drive the rollers. Motor roller drive operates by the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the form of conveyance.
