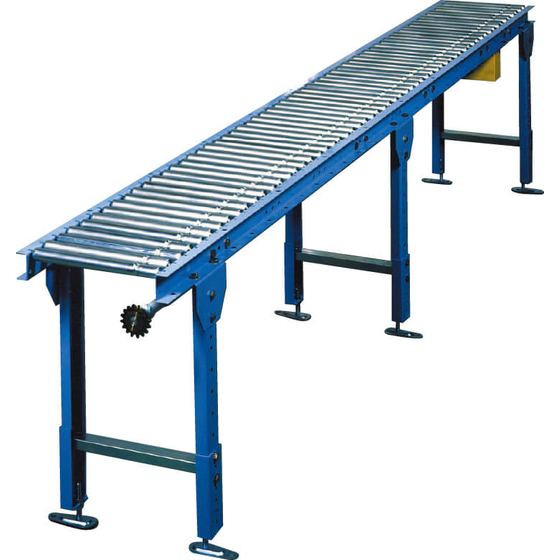

Round belt driven accumulation roller conveyor MCD-42
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Ideal for transporting small items! Achieves smooth and efficient accumulation transport with a round belt drive.
Achieved a roller pitch of 50 mm with a counter drive using a round belt for power transmission. Capable of transporting items with a length of 200 mm. 【Main Specifications】 - Reference transport mass: 39 kg/m (distributed load) - Length: 60 to 300 cm - Frame: [90×30×3.2 - Nominal width: 315 to 630 mm
Inquire About This Product
basic information
【Features】 - Supports small item transport with a roller pitch of 50 mm - Simple accumulation function driven by a round belt - Economical and flexible line design with counter drive system 【Other Specifications】 - Roller diameter: φ42.7 mm - Angles: 30°, 45°, 60°, 90° - Motor output: 0.2 kW, 0.4 kW, 0.75 kW - Minimum height: 300 mm (drive unit) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Responding to all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can meet all logistics needs from transportation to palletizing. ■Advantages of line configuration The main model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, there is a lineup of free roller conveyors that transport without using power. They are easy to use, cost-effective, and help reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by a motor feature a round belt drive that allows for inexpensive and simple accumulation. There is also chain drive, which drives rollers with sprockets via a chain. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drive uses a motor or motor roller to drive the rollers. Motor roller drive operates through the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the transportation form.
catalog（2）
Download All Catalogs
Company information
Maruyasu Machinery is a machinery manufacturer that specializes in conveying equipment such as conveyors, as well as various automation and labor-saving machines. Through solving challenges related to "transportation," we contribute to automation, labor reduction, and energy conservation across a wide range of industries. We have adapted to any form of transportation that moves from right to left or top to bottom, handling all types of transported items including food trays, carton cases, plastic containers, and pallets. In addition to providing versatile standardized products (standard products), we have focused on offering products tailored to the individual needs of our customers. After 70 years since our founding, we will continue to dedicate ourselves to providing even more original products and services to overcome the challenging economic environment.
